Industrial vibrators of the family and from a German company Mooser We are ready to work in the most difficult conditions, ensuring maximum performance and durability of the application. They are used as part of vibration equipment to carry out processes for compaction, loosening, separation, sieving, transportation, unloading of materials of various nature and fractions.
Series AND 8 It is represented by two types of execution, the first type is designed for continuous operation, the second for periodic start-up mode, for example, for unloading bunkers, it has maintenance-free support units. The power characteristics are regulated stepwise (11 or 14 variations) by changing the weight load (eccentric loads). The housing is made of aluminum (injection molding), high protection class against dust and moisture penetration.

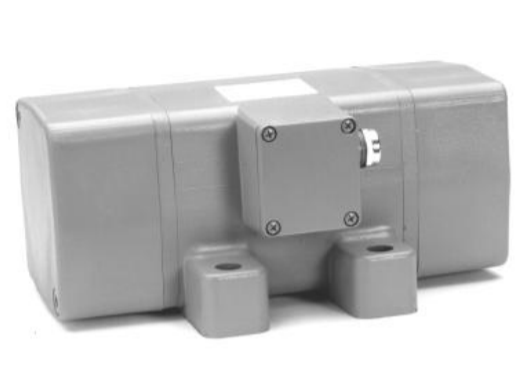

Technical Characteristics of Mooser VE 8 series pad vibrators
- Centrifugal (driving) force: 4200 - 5350 N;
- Static moment: 8.4 - 10.7 cm•kg;
- Rated power: 0.54 kW;
- Rated current: 0.95 - 1.65 A;
- Supply voltage: 230 /400 V, 3 phase AC, 50 Hz (other values on request);
- Rotation speed: 3000 rpm;
- The degree of protection of the case: IP65;
- Insulation class: F.
Standard sizes of Mooser VE 8 series motor vibrators (3000 rpm version)
Type vibration motors | Centrifugal power, kg | Static moment, cm·kg | Current, A 230 /400 V | Power, kW |
AND 8/2 | 4200 | 8,4 | 1,65 /0,95 | 0,54 |
AND 8/2-11 | 5350 | 10,7 | 1,65 /0,95 | 0,54 |
You can buy Mooser VE 8 vibration motors, find out the price and more information about the product by contacting our specialists.
