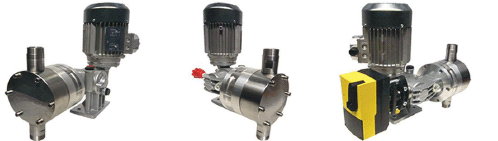

Fimars 50 Hz Sealed Plunger pump FUL

FUL Series Plunger Pump

Efficiency:

• Consumption: 0-1000L/h
• Pressure: up to 100bar

Material:

• S.S.316L
• PVC
• C276
• Made of titanium

The sealed plunger pumps of the FUL series are equipped with FPS technology. Accuracy: ± 2% of the nominal flow rate from 10 to 100% of the nominal flow rate*

Features:

• Zero leakage of the pump piston
• Robust, compact, reliable design
• Simple operation with minimal maintenance

Adjustment:

• 0-100% stroke adjustment during operation
• Standard micrometric manual adjustment of 1mm
• Optional electric drive, 4-20 mA or 0-10 commands with manual control
• Additional motor with built-in frequency converter for control
