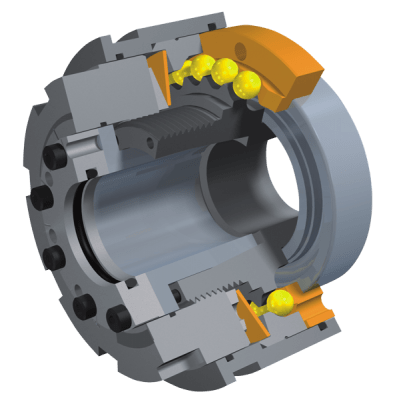

Disconnecting couplings EAS-compact-R/RA (rostfrei) They are triggered instantly when the set torque limits are reached in order to avoid the negative effect of overloading the drive and implement automatic re-engagement after one full revolution. High-precision transmission of power characteristics, easy adjustment of the limiting value, compact dimensions. The lubricants used meet the requirements of the food industry.
Anti-corrosion stainless steel design, hardened parts, two functional construction options:
- EAS-compact-R with an open design, similar to EAS-compact in the standard version
- EAS-compact-RA with closed design and sealing elements for reliable protection against aggressive environments
Technical characteristics of the Mayr EAS-compact-R/RA couplings
- Nom. moment: 10 - 700 Nm;
- Max. speed: 1200 - 3000 rpm;
- Outer diameter: 80 - 140 mm;
- Diameter of the sleeve: 15 - 55 mm.
Parameters of standard sizes of torque limiter couplings Mayr EAS-compact-R/RA
Type of coupling | The limit moment, Nm | Max. speed, rpm | Max. diameter bushings, mm |
0/49A.515.0, 0/49A.525.0, 0/49A.515.C, 0/49A.525.C 0/49A.615.0, 0/49A.625.0, 0/49A.615.C, 0/49A.625.C 0/49A.725.0, 0/49A.725.C | 10 - 100 | 3000 | 15 - 25 |
1/49A.515.0, 1/49A.525.0, 1/49A.515.C, 1/49A.525.C 1/49A.615.0, 1/49A.625.0, 1/49A.615.C, 1/49A.625.C 1/49A.725.0, 1/49A.725.C | 20 - 50 | 2500 | 22 - 35 |
2/49A.515.0, 2/49A.525.0, 2/49A.515.C, 2/49A.525.C 2/49A.615.0, 2/49A.625.0, 2/49A.615.C, 2/49A.625.C 2/49A.725.0, 2/49A.725.C | 40 - 400 | 2000 | 32 - 45 |
3/49A.515.0, 3/49A.525.0, 3/49A.515.C, 3/49A.525.C 3/49A.615.0, 3/49A.625.0, 3/49A.615.C, 3/49A.625.C 3/49A.725.0, 3/49A.725.C | 70 - 700 | 1200 | 35 - 55 |
You can buy Mayr EAS-compact-R/RA safety couplings, find out the price and more information about the products by contacting our specialists.
