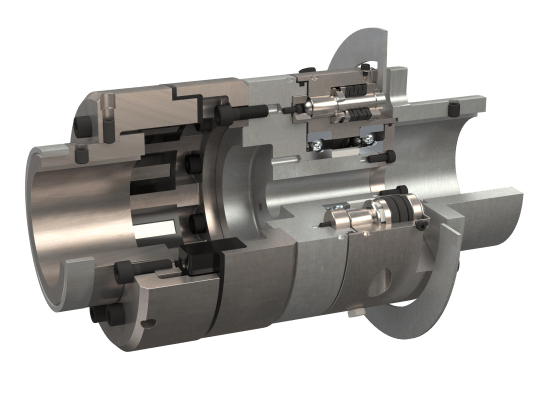

Safety couplings Mayr EAS-Dutytorque they provide reliable protection against overloading of extruders. Instant disconnection of the shafts when the set torque limits are reached, without automatic engagement, free run-out. Wide range of limiter trigger level settings, long service life with minimal maintenance requirements.
The couplings of this series have a compact design with the possibility of radial mounting without the need to move the drive, and are suitable for large shaft diameters. A version with an elastic insert is available to order for effective offset compensation. Re-installation after disconnection takes a minimum of time and effort.
Technical characteristics of the Mayr EAS-Dutytorque couplings
- Nom. moment: 70 - 17000 Nm;
- Max. speed: 1750 - 3500 rpm;
- Outer diameter: 190 - 330 mm;
- Diameter of the sleeve: 85 - 160 mm;
- Operating temperature range: -20 … +80 °C.
Parameters of standard sizes of torque limiter couplings Mayr EAS-Dutytorque
Type of coupling | The limit moment, Nm | Max. speed, rpm | Max. diameter bushings, mm |
2/4043.30400, 2/4043.40400, 2/4043.50400, 2/4043.60400, 2/4043.70400 2/4043.31400, 2/4043.41400, 2/4043.51400, 2/4043.61400, 2/4043.71400 | 70 - 1400 | 3500 | 90 /85 |
3/4043.30400, 3/4043.40400, 3/4043.50400, 3/4043.60400, 3/4043.70400 3/4043.31400, 3/4043.41400, 3/4043.51400, 3/4043.61400, 3/4043.71400 | 70 - 1400 | 3000 | 90 /95 |
4/4043.30400, 4/4043.40400, 4/4043.50400, 4/4043.60400 4/4043.31400, 4/4043.41400, 4/4043.51400, 4/4043.61400 | 150 - 2800 | 3000 | 120 /95 |
5/4043.30400, 5/4043.40400, 5/4043.50400, 5/4043.60400, 5/4043.70400 5/4043.31400, 5/4043.41400, 5/4043.51400, 5/4043.61400, 5/4043.71400 | 150 - 4000 | 2750 | 120 /100 |
6/4043.30400, 6/4043.40400, 6/4043.50400, 6/4043.60400, 6/4043.70400 6/4043.31400, 6/4043.41400, 6/4043.51400, 6/4043.61400, 6/4043.71400 | 150 - 5600 | 2500 | 120 /115 |
7/4043.30400, 7/4043.40400, 7/4043.50400, 7/4043.60400 7/4043.31400, 7/4043.41400, 7/4043.51400, 7/4043.61400 | 800 - 7000 | 2250 | 140 /130 |
8/4043.30400, 8/4043.40400, 8/4043.50400, 8/4043.60400 8/4043.31400, 8/4043.41400, 8/4043.51400, 8/4043.61400 | 800 - 12000 | 2000 | 140 /135 |
9/4043.30400, 9/4043.40400, 9/4043.50400, 9/4043.60400, 9/4043.70400 9/4043.31400, 9/4043.41400, 9/4043.51400, 9/4043.61400, 9/4043.71400 | 800 - 17000 | 1750 | 140 /160 |
You can buy safety couplings for Mayr EAS-Dutytorque extruders, find out the price and more information about the products by contacting our specialists.
