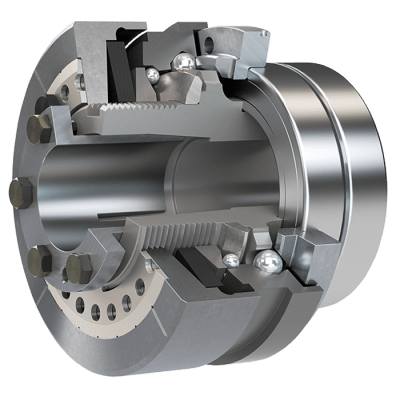

Torque limiter couplings Mayr EAS-HSC (High Speed Compact) with a compact design and Mayr EAS-HSE (High Speed Element) they provide instant disconnection of the connecting elements of the drive units when critical load values are reached, and a geometric closure mechanism. Complete disengagement, free run-out, forced fixation is required to resume operation (manually or with the help of those. devices), synchronous reconnection.
This line is used as part of high-speed drive systems, in particular for mounting and protecting test bench equipment. They are characterized by high structural rigidity and torsion resistance. Modular construction allows you to obtain an exhaustive number of constructive solutions for various needs.
Technical characteristics of the Mayr EAS-HSC /EAS-HSE safety couplings
- Maximum torque: 5 - 8400 Nm;
- Max. speed: 6000 - 12000 rpm (on request up to 20,000 rpm in the EAS-HSE version);
- Outer diameter: 70 - 250 mm;
- Diameter of the sleeve: 10 - 120 mm.
Parameters of standard sizes of torque limiter couplings Mayr EAS-HSC
Type of coupling (_/4090. _- standard version, _/4096. _- combination with ROBA-DS) | The limit torque moment, Nm | Max. speed, rpm | Diameter bushings, mm (EAS /ROBA-DS) |
01/4090.513.., 01/4090.613.., 01/4090.713.. 01/4090.813.. 01/4096.513.., 01/4096.613.., 01/4096.713.. 01/4096.813.. | 5 - 62,5 | 12000 | 10 - 20 /19 - 38 |
0/4090.513.., 0/4090.613.., 0/4090.713.. 0/4090.813.. 0/4096.513.., 0/4096.613.., 0/4096.713.. 0/4096.813.. | 10 - 125 | 10000 | 15 - 25 /25 - 45 |
1/4090.513.., 1/4090.613.., 1/4090.713.. 1/4090.813.. 1/4096.513.., 1/4096.613.., 1/4096.713.. 1/4096.813.. | 20 - 250 | 9000 | 22 - 35 /20 - 52 |
2/4090.513.., 2/4090.613.., 2/4090.713.. 2/4090.813.. 2/4096.513.., 2/4096.613.., 2/4096.713.. 2/4096.813.. | 40 - 500 | 7000 | 32 - 45 /25 - 60 |
3/4090.513.., 3/4090.613.., 3/4090.713.. 3/4090.813.. 3/4096.513.., 3/4096.613.., 3/4096.713.. 3/4096.813.. | 80 - 1000 | 6000 | 35 - 55 /30 - 70 |
Parameters of standard sizes of torque limiter couplings Mayr EAS-HSE
Type of coupling (_/4030. _- standard version, _/4036. _- combination with ROBA-DS) | The limit torque moment, Nm | Max. speed, rpm | Diameter bushings, mm (EAS /ROBA-DS) |
02/4030.404.., 02/4030.504.., 02/4030.604.., 02/4030.704.. 02/4036.404.., 02/4036.504.., 02/4036.604.., 02/4036.704.. | 100 - 1000 | 12000 | 48 - 60 /30 - 70 |
01/4030.404.., 01/4030.504.., 01/4030.604.., 01/4030.704.. 01/4036.404.., 01/4036.504.., 01/4036.604.., 01/4036.704.. | 325 - 2500 | 10000 | 47 - 75 /40 - 100 |
0/4030.404.., 0/4030.504.., 0/4030.604.. 0/4036.404.., 0/4036.504.., 0/4036.604.. | 1400 - 8400 | 7000 | 70 - 120 /60 - 120 |
You can buy Mayr EAS-HSC /EAS-HSE safety couplings, find out the price and more information about the products by contacting our specialists.
