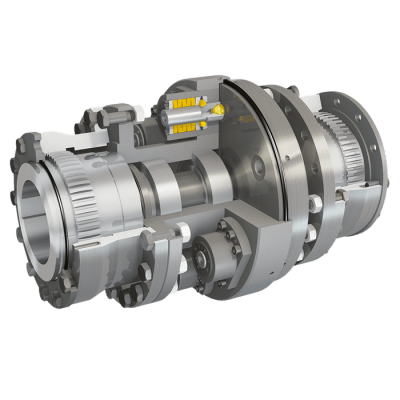

Safety couplings Mayr EAS-HT for instant disconnection when overloading the components of the drive systems without the possibility of their automatic re-coupling, this operation is performed by force (manually or using devices). The range is designed specifically for use in high-torque technological installations, the most durable and reliable design for long-term use. Easy setting of the exact torque limits according to the tuning tables.
A wide range of possible versions for optimal model selection according to established production requirements, as well as individual fine-tuning on request. Adaptation of couplings to work in difficult environmental conditions and in combination with additional fastening elements.
Technical characteristics of the Mayr EAS-HT safety couplings
- Maximum torque: 1300 - 440,000 Nm;
- Max. speed: 750 - 3000 rpm;
- Outer diameter: 260 - 740 mm;
- Max. diameter of the sleeve: 90 - 340 mm;
- Operating temperature range: - 20 … +80 °C.
Parameters of standard sizes of torque limiter couplings Mayr EAS-HT
Type of coupling | The limit torque moment, Nm | Max. speed, rpm | Max. diameter bushings, mm |
short support sleeve with keyway | |||
7/4050.40400, 7/4050.50400, 7/4050.60400, 7/4050.70400 | 1300 - 8000 | 3000 | 90 |
8/4050.40400, 8/4050.50400, 8/4050.60400, 8/4050.70400 | 1600 - 13000 | 2800 | 110 |
9/4050.40400, 9/4050.50400, 9/4050.60400, 9/4050.70400 | 4000 - 24000 | 2500 | 135 |
10/4050.40400, 10/4050.50400, 10/4050.60400, 10/4050.70400 | 5000 - 40000 | 2200 | 160 |
with elastic coupling | |||
7/4053.40400, 7/4053.50400, 7/4053.60400, 7/4053.70400 | 1300 - 8000 | 2250 | 90 |
8/4053.40400, 8/4053.50400, 8/4053.60400, 8/4053.70400 | 1600 - 13000 | 2000 | 110 |
9/4053.40400, 9/4053.50400, 9/4053.60400, 9/4053.70400 | 4000 - 24000 | 1500 | 135 |
10/4053.40400, 10/4053.50400, 10/4053.60400, 10/4053.70400 | 5000 - 40000 | 1400 | 160 |
flanged design | |||
0/4060.71400 | 7500 - 15000 | 2000 | - |
1/4060.71400 | 12500 - 25000 | 1750 | - |
2/4060.71400 | 20000 - 40000 | 1500 | - |
3/4060.71400 | 37500 - 75000 | 1250 | - |
4/4060.71400 | 70000 - 140000 | 1000 | - |
5/4060.71400 | 125000 - 250000 | 900 | - |
6/4060.71400 | 220000 - 440000 | 750 | - |
toothed couplings | |||
0/4061.71400 | 7500 - 15000 | 2000 | 95 |
1/4061.71400 | 12500 - 25000 | 1750 | 130 |
2/4061.71400 | 20000 - 40000 | 1500 | 150 |
3/4061.71400 | 37500 - 75000 | 1250 | 185 |
4/4061.71400 | 70000 - 140000 | 1000 | 210 |
5/4061.71400 | 125000 - 250000 | 900 | 285 |
6/4061.71400 | 220000 - 440000 | 750 | 340 |
gas-free elastic couplings, double-hinged | |||
0/4062.71400 | 7500 - 15000 | 2000 | 140 |
1/4062.71400 | 12500 - 25000 | 1750 | 170 |
2/4062.71400 | 20000 - 40000 | 1500 | 180 |
3/4062.71400 | 37500 - 75000 | 1250 | 220 |
4/4062.71400 | 70000 - 140000 | 1000 | 240 |
couplings with elastomeric bolts | |||
4/4063.70400 | 40000 - 80000 | 1000 | 240 |
5/4063.70400 | 72500 - 145000 | 900 | 300 |
6/4063.70400 | 130000 - 260000 | 750 | 320 |
