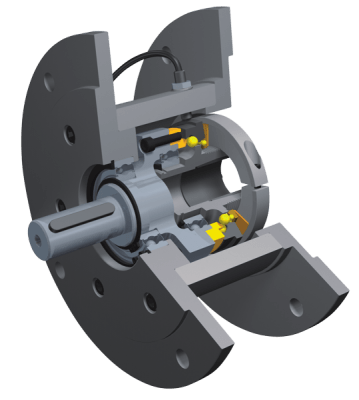

Connecting couplings Mayr EAS-HTL with the function of disconnecting the load, when the set torque limit is reached, they are made in the format of full compliance with the installation flange dimensions for IEC/NEMA standards. This facilitates the installation of drive units of standardized equipment, and this series has a sealed design to protect against dust and water ingress.
Reliable and practical design for use in many industries, including satisfying the requirements of the food and chemical industry.
The EAS-HTL model range is divided into three types of functional design:
- synchronous couplings (_/4_0.525.0) with repeated automatic engagement after one full turn;
- ratchet couplings (_/4_0.520.0) with repeated automatic engagement after a step of 15 degrees;
- overload clutches Mayr EAS-HTL (_/490.524._) with forced engagement after the limiter is triggered (manually or with the help of technical devices).
Technical characteristics of the Mayr EAS-HTL couplings
- Nom. moment: 2 - 2400 Nm;
- Max. speed: 1500 - 8000 rpm;
- Outer diameter: 140 - 660 mm;
- Shaft/Sleeve diameter: 11 - 80 mm.
Parameters of standard sizes of synchronous (_/4_0.525.0) and ratchet (_/4_0.520.0) torque limiter couplings with automatic re-engagement Mayr EAS-HTL
Type of coupling | The limit moment, Nm | Max. speed, rpm |
63-02/450.520.0, 63-02/450.620.0, 63-02/450.720.0 63-02/450.525.0, 63-02/450.625.0, 63-02/450.725.0 | 2 - 15 | 4000 |
71-02/450.520.0, 71-02/450.620.0, 71-02/450.720.0 71-02/450.525.0, 71-02/450.625.0, 71-02/450.725.0 | 2 - 15 | 4000 |
80-01/490.520.0, 80-01/490.620.0, 80-01/490.720.0 80-01/490.525.0, 80-01/490.625.0, 80-01/490.725.0 | 5 - 50 | 4000 |
90-0/490.520.0, 90-0/490.620.0, 90-0/490.720.0 90-0/490.525.0, 90-0/490.625.0, 90-0/490.725.0 | 10 - 100 | 3000 |
100-1/490.520.0, 100-1/490.620.0, 100-1/490.720.0 100-1/490.525.0, 100-1/490.625.0, 100-1/490.725.0 | 20 - 200 | 2500 |
132-2/490.520.0, 132-2/490.620.0, 132-2/490.720.0 132-2/490.525.0, 132-2/490.625.0, 132-2/490.725.0 | 40 - 400 | 2000 |
160-3/490.520.0, 160-3/490.620.0, 160-3/490.720.0 160-3/490.525.0, 160-3/490.625.0, 160-3/490.725.0 | 70 - 700 | 1500 |
180-3/490.520.0, 180-3/490.620.0, 180-3/490.720.0 180-3/490.525.0, 180-3/490.625.0, 180-3/490.725.0 | 70 - 700 | 1500 |
Parameters of standard sizes of overload couplings of forced re-engagement Mayr EAS-HTL (_/490.524._)
Type of coupling | The limit moment, Nm | Max. speed, rpm |
80-01/490.524.0, 80-01/490.624.0, 80-01/490.724.0 80-01/490.524.2, 80-01/490.624.2, 80-01/490.724.2 | 5 - 50 | 8000 |
90-0/490.524.0, 90-0/490.624.0, 90-0/490.724.0 90-0/490.524.2, 90-0/490.624.2, 90-0/490.724.2 | 10 - 100 | 7000 |
100-1/490.524.0, 100-1/490.624.0, 100-1/490.724.0 100-1/490.524.2, 100-1/490.624.2, 100-1/490.724.2 | 20 - 200 | 6000 |
132-2/490.524.0, 132-2/490.624.0, 132-2/490.724.0 132-2/490.524.2, 132-2/490.624.2, 132-2/490.724.2 | 40 - 400 | 5000 |
160-3/490.524.0, 160-3/490.624.0, 160-3/490.724.0 160-3/490.524.2, 160-3/490.624.2, 160-3/490.724.2 | 80 - 800 | 4000 |
180-3/490.524.0, 180-3/490.624.0, 180-3/490.724.0 180-3/490.524.2, 180-3/490.624.2, 180-3/490.724.2 | 80 - 800 | 4000 |
200-4/490.524.0, 200-4/490.624.0, 200-4/490.724.0 200-4/490.524.2, 200-4/490.624.2, 200-4/490.724.2 | 120 - 1200 | 3500 |
225-4/490.524.0, 225-4/490.624.0, 225-4/490.724.0 225-4/490.524.2, 225-4/490.624.2, 225-4/490.724.2 | 120 - 1200 | 3500 |
250-4/490.524.0, 250-4/490.624.0, 250-4/490.724.0 250-4/490.524.2, 250-4/490.624.2, 250-4/490.724.2 | 120 - 1200 | 3500 |
280-5/490.524.0, 280-5/490.624.0, 280-5/490.724.0 280-5/490.524.2, 280-5/490.624.2, 280-5/490.724.2 | 240 - 2400 | 3000 |
315-5/490.524.0, 315-5/490.624.0, 315-5/490.724.0 315-5/490.524.2, 315-5/490.624.2, 315-5/490.724.2 | 240 - 2400 | 3000 |
You can buy Mayr EAS-HTL safety couplings, find out the price and more information about the products by contacting our specialists.
