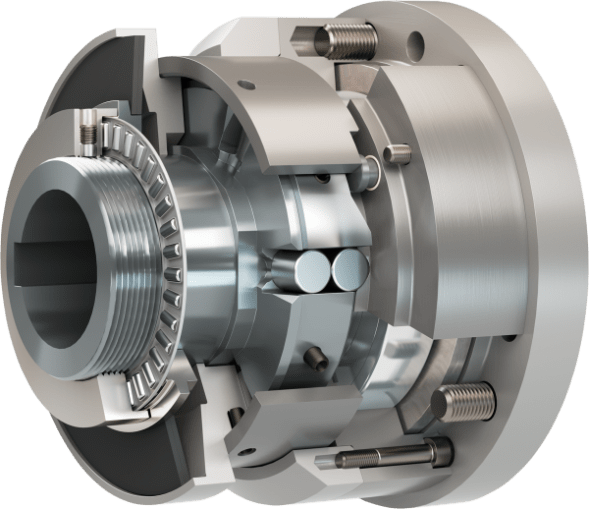

Torque limiter couplings of the series EAS-reverse from the company Mayr They are ideal for working in conditions of difficult access to the components of the drive units. They ensure the separation of the driving axle and the driven equipment without residual torque in order to avoid the negative consequences of a critical overload level, while their automatic re-coupling is functionally implemented through switching on with a change in the direction of rotation. A long time for a free run.
Stepless adjustment of the torque limit value. The coupling design is completely sealed, especially durable functional components, double bearing. Two types of design, depending on the purpose of the application: with a support flange for direct mounting of drive elements (pulleys, gears, etc.) and a design for connecting two shafts.
Technical characteristics of the Mayr EAS-reverse safety couplings
- Maximum torque: 75 - 6000 Nm;
- Max. speed: 2000 - 3600 rpm;
- Outer diameter: 182 - 305 mm;
- Diameter of the sleeve: 17 - 120 mm;
- Operating temperature range: - 30 … +80 °C.
Parameters of standard sizes of torque limiter couplings Mayr EAS-reverse
Type of coupling (_/4100. _- for direct mounting of drive elements, _/4103. _- for connecting two shafts) | The limit torque moment, Nm | Max. speed, rpm | Diameter bushings, mm |
3/4100.40400, 3/4100.50400, 3/4100.60400, 3/4100.70400 3/4103.40400, 3/4103.50400, 3/4103.60400, 3/4103.70400 | 75 - 750 | 3600 | 17 - 65 |
4/4100.40400, 4/4100.50400, 4/4100.60400, 4/4100.70400 4/4103.40400, 4/4103.50400, 4/4103.60400, 4/4103.70400 | 125 - 1250 | 2000 | 20 - 85 |
5/4100.40400, 5/4100.50400, 5/4100.60400, 5/4100.70400 5/4103.40400, 5/4103.50400, 5/4103.60400, 5/4103.70400 | 250 - 2500 | 2000 | 30 - 105 |
6/4100.40400, 6/4100.50400, 6/4100.60400, 6/4100.70400 6/4103.40400, 6/4103.50400, 6/4103.60400, 6/4103.70400 | 500 - 6000 | 2000 | 40 - 120 |
You can buy Mayr EAS-reverse safety couplings, find out the price and more information about the products by contacting our specialists.
