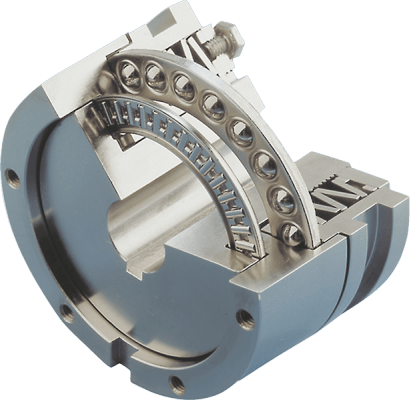

A large family of load-limiting safety couplings Mayr EAS-Standard It covers a wide range of possible applications and offers the consumer a variety of design solutions within a single line. These are time-tested quality and functionality, they have been used in various industries for almost half a century and have earned a reputation as reliable and effective elements forming a system for ensuring the safety of operation of drive equipment.
The catalog is presented ratchet, synchronous couplings, couplings with geometric closure mechanisms and with built-in monitoring sensors. Within each subgroup there are different versions of the design, in particular:
- with a flange for attachment of drive elements (gears, pulleys, sprockets, etc.)
- with an integrated bearing with a short and elongated sleeve variation
- with elastomeric coupling for mounting two shafts, effective offset compensation
- with increased torsional rigidity
- with a forced working principle
Technical characteristics of Mayr EAS-Standard safety couplings
- Nom. moment: 2.5 - 12000 Nm;
- Max. speed: 100 - 6500 rpm;
- Outer diameter: 55 - 380 mm;
- Diameter of the sleeve: 8 - 150 mm.
Parameters of standard sizes of ratchet torque limiter couplings Mayr EAS- Standard
Type of coupling | The limit moment, Nm | Max. speed, rpm | Diameter bushings, mm |
flanged design | |||
0/400.400.0, 0/400.500.0, 0/400.600.0 | 2,5 - 20 | 4300 | 8 - 20 |
1/400.400.0, 1/400.500.0, 1/400.600.0 | 6,0 - 50 | 2880 | 11 - 25 |
2/400.400.0, 2/400.500.0, 2/400.600.0 | 12 - 100 | 2360 | 15 - 35 |
3/400.400.0, 3/400.500.0, 3/400.600.0 | 25 - 200 | 2000 | 19 - 45 |
4/400.400.0, 4/400.500.0, 4/400.600.0 | 50 - 400 | 1660 | 25 - 55 |
5/400.400.0, 5/400.500.0, 5/400.600.0 | 87 - 700 | 1360 | 30 - 65 |
6/400.400.0, 6/400.500.0, 6/400.600.0 | 150 - 1200 | 1200 | 40 - 75 |
7/400.400.0, 7/400.500.0, 7/400.600.0 | 250 - 2000 | 960 | 50 - 100 |
8/400.400.0, 8/400.500.0, 8/400.600.0 | 425 - 3400 | 840 | 60 - 120 |
9/400.400.0, 9/400.500.0, 9/400.600.0 | 750 - 6000 | 600 | 70 - 150 |
with a short sleeve | |||
0/400.400.5, 0/400.500.5, 0/400.600.5 | 2,5 - 20 | 4300 | 8 - 20 |
1/400.400.5, 1/400.500.5, 1/400.600.5 | 6,0 - 50 | 2880 | 11 - 25 |
2/400.400.5, 2/400.500.5, 2/400.600.5 | 12 - 100 | 2360 | 15 - 35 |
3/400.400.5, 3/400.500.5, 3/400.600.5 | 25 - 200 | 2000 | 19 - 45 |
4/400.400.5, 4/400.500.5, 4/400.600.5 | 50 - 400 | 1660 | 25 - 55 |
5/400.400.5, 5/400.500.5, 5/400.600.5 | 87 - 700 | 1360 | 30 - 65 |
6/400.400.5, 6/400.500.5, 6/400.600.5 | 150 - 1200 | 1200 | 40 - 75 |
7/400.400.5, 7/400.500.5, 7/400.600.5 | 250 - 2000 | 960 | 50 - 100 |
8/400.400.5, 8/400.500.5, 8/400.600.5 | 425 - 3400 | 840 | 60 - 120 |
9/400.400.5, 9/400.500.5, 9/400.600.5 | 750 - 6000 | 600 | 70 - 150 |
with an extended sleeve | |||
0/400.400.1, 0/400.100.1, 0/400.600.1 | 2,5 - 20 | 4300 | 8 - 20 |
1/400.400.1, 1/400.100.1, 1/400.600.1 | 6,0 - 50 | 2880 | 11 - 25 |
2/400.400.1, 2/400.100.1, 2/400.600.1 | 12 - 100 | 2360 | 15 - 35 |
3/400.400.1, 3/400.100.1, 3/400.600.1 | 25 - 200 | 2000 | 19 - 45 |
4/400.400.1, 4/400.100.1, 4/400.600.1 | 50 - 400 | 1660 | 25 - 55 |
5/400.400.1, 5/400.100.1, 5/400.600.1 | 87 - 700 | 1360 | 30 - 65 |
6/400.400.1, 6/400.100.1, 6/400.600.1 | 150 - 1200 | 1200 | 40 - 75 |
7/400.400.1, 7/400.100.1, 7/400.600.1 | 250 - 2000 | 960 | 50 - 100 |
8/400.400.1, 8/400.100.1, 8/400.600.1 | 425 - 3400 | 840 | 60 - 120 |
9/400.400.1, 9/400.100.1, 9/400.600.1 | 750 - 6000 | 600 | 70 - 150 |
with a Sproc ratchet mechanism | |||
0/410.400.0, 0/410.500.0, 0/410.600.0 | 2,5 - 20 | 4300 | 8 - 20 |
1/410.400.0, 1/410.500.0, 1/410.600.0 | 6,0 - 50 | 2880 | 11 - 25 |
2/410.400.0, 2/410.500.0, 2/410.600.0 | 12 - 100 | 2360 | 15 - 35 |
3/410.400.0, 3/410.500.0, 3/410.600.0 | 25 - 200 | 2000 | 19 - 45 |
4/410.400.0, 4/410.500.0, 4/410.600.0 | 50 - 400 | 1660 | 25 - 55 |
5/410.400.0, 5/410.500.0, 5/410.600.0 | 87 - 700 | 1360 | 30 - 65 |
with elastomeric inserts | |||
0/437.400.0, 0/437.500.0, 0/437.600.0 | 2,5 - 20 | 4300 | 8 - 20 |
1/437.400.0, 1/437.500.0, 1/437.600.0 | 6,0 - 50 | 2880 | 11 - 25 |
2/437.400.0, 2/437.500.0, 2/437.600.0 | 12 - 100 | 2360 | 15 - 35 |
3/437.400.0, 3/437.500.0, 3/437.600.0 | 25 - 200 | 2000 | 19 - 45 |
4/437.400.0, 4/437.500.0, 4/437.600.0 | 50 - 400 | 1660 | 25 - 55 |
5/437.400.0, 5/437.500.0, 5/437.600.0 | 87 - 700 | 1360 | 30 - 65 |
with forced disconnection | |||
6/435.400.0, 6/435.500.0, 6/435.600.0 | 150 - 1200 | 1200 | 40 - 75 |
7/435.400.0, 7/435.500.0, 7/435.600.0 | 250 - 2000 | 960 | 50 - 100 |
8/435.400.0, 8/435.500.0, 8/435.600.0 | 425 - 3400 | 840 | 60 - 120 |
9/435.400.0, 9/435.500.0, 9/435.600.0 | 750 - 6000 | 600 | 70 - 150 |
tough on twisting | |||
0/436.400.8, 0/436.800.8, 0/436.600.8 | 2,5 - 20 | 4300 | 8 - 20 |
1/436.400.8, 1/436.800.8, 1/436.600.8 | 6,0 - 50 | 2880 | 11 - 25 |
2/436.400.8, 2/436.800.8, 2/436.600.8 | 12 - 100 | 2360 | 15 - 35 |
3/436.400.8, 3/436.800.8, 3/436.600.8 | 25 - 200 | 2000 | 19 - 45 |
4/436.400.8, 4/436.800.8, 4/436.600.8 | 50 - 400 | 1660 | 25 - 55 |
5/436.400.8, 5/436.800.8, 5/436.600.8 | 87 - 700 | 1360 | 30 - 65 |
Parameters of standard sizes of synchronous torque limiter couplings Mayr EAS- Standard
Type of coupling | The limit moment, Nm | Max. speed, rpm | Diameter bushings, mm |
flanged design | |||
0/400.405.0, 0/400.505.0, 0/400.605.0 | 5 - 40 | 1430 | 8 - 20 |
1/400.405.0, 1/400.505.0, 1/400.605.0 | 12 - 100 | 690 | 11 - 25 |
2/400.405.0, 2/400.505.0, 2/400.605.0 | 25 - 200 | 790 | 15 - 35 |
3/400.405.0, 3/400.505.0, 3/400.605.0 | 50 - 400 | 660 | 19 - 45 |
4/400.405.0, 4/400.505.0, 4/400.605.0 | 100 - 800 | 550 | 25 - 55 |
5/400.405.0, 5/400.505.0, 5/400.605.0 | 175 - 1400 | 400 | 30 - 65 |
6/400.405.0, 6/400.505.0 | 300 - 1200 | 300 | 40 - 75 |
7/400.405.0, 7/400.505.0 | 500 - 2000 | 200 | 50 - 100 |
8/400.405.0, 8/400.505.0 | 850 - 4000 | 100 | 60 - 120 |
with a short sleeve | |||
0/400.405.5, 0/400.505.5, 0/400.605.5 | 5 - 40 | 1430 | 8 - 20 |
1/400.405.5, 1/400.505.5, 1/400.605.5 | 12 - 100 | 690 | 11 - 25 |
2/400.405.5, 2/400.505.5, 2/400.605.5 | 25 - 200 | 790 | 15 - 35 |
3/400.405.5, 3/400.505.5, 3/400.605.5 | 50 - 400 | 660 | 19 - 45 |
4/400.405.5, 4/400.505.5, 4/400.605.5 | 100 - 800 | 550 | 25 - 55 |
5/400.405.5, 5/400.505.5, 5/400.605.5 | 175 - 1400 | 400 | 30 - 65 |
6/400.405.5, 6/400.505.5 | 300 - 1200 | 300 | 40 - 75 |
7/400.405.5, 7/400.505.5 | 500 - 2000 | 200 | 50 - 100 |
8/400.405.5, 8/400.505.5 | 850 - 4000 | 100 | 52 - 120 |
with an extended sleeve | |||
0/400.405.1, 0/400.505.1, 0/400.605.1 | 5 - 40 | 1430 | 8 - 20 |
1/400.405.1, 1/400.505.1, 1/400.605.1 | 12 - 100 | 690 | 11 - 25 |
2/400.405.1, 2/400.505.1, 2/400.605.1 | 25 - 200 | 790 | 15 - 35 |
3/400.405.1, 3/400.505.1, 3/400.605.1 | 50 - 400 | 660 | 19 - 45 |
4/400.405.1, 4/400.505.1, 4/400.605.1 | 100 - 800 | 550 | 25 - 55 |
5/400.405.1, 5/400.505.1, 5/400.605.1 | 175 - 1400 | 400 | 30 - 65 |
6/400.405.1, 6/400.505.1 | 300 - 1200 | 300 | 40 - 75 |
7/400.405.1, 7/400.505.1 | 500 - 2000 | 200 | 50 - 100 |
8/400.405.1, 8/400.505.1 | 850 - 4000 | 100 | 52 - 120 |
with elastomeric inserts | |||
0/437.405.0, 0/437.505.0, 0/437.605.0 | 5 - 40 | 1430 | 8 - 20 |
1/437.405.0, 1/437.505.0, 1/437.605.0 | 12 - 100 | 690 | 11 - 25 |
2/437.405.0, 2/437.505.0, 2/437.605.0 | 25 - 200 | 790 | 15 - 35 |
3/437.405.0, 3/437.505.0, 3/437.605.0 | 50 - 400 | 660 | 19 - 45 |
4/437.405.0, 4/437.505.0, 4/437.605.0 | 100 - 800 | 550 | 25 - 55 |
5/437.405.0, 5/437.505.0, 5/437.605.0 | 175 - 1400 | 400 | 30 - 65 |
with forced disconnection | |||
6/435.405.0, 6/435.505.0 | 300 - 1200 | 300 | 40 - 75 |
7/435.405.0, 7/435.505.0 | 500 - 2000 | 200 | 50 - 100 |
8/435.405.0, 8/435.505.0 | 850 - 4000 | 100 | 60 - 120 |
tough on twisting | |||
0/436.405.8, 0/436.505.8, 0/436.605.8 | 5 - 40 | 1430 | 8 - 20 |
1/436.405.8, 1/436.505.8, 1/436.605.8 | 12 - 100 | 690 | 11 - 25 |
2/436.405.8, 2/436.505.8, 2/436.605.8 | 25 - 200 | 790 | 15 - 35 |
3/436.405.8, 3/436.505.8, 3/436.605.8 | 50 - 400 | 660 | 19 - 45 |
4/436.405.8, 4/436.505.8, 4/436.605.8 | 100 - 800 | 550 | 25 - 55 |
5/436.405.8, 5/436.505.8, 5/436.605.8 | 175 - 1400 | 400 | 30 - 65 |
6/436.405.8, 6/436.505.8 | 300 - 1200 | 300 | 40 - 75 |
7/436.405.8, 7/436.505.8 | 500 - 2000 | 200 | 50 - 100 |
8/436.405.8, 8/436.505.8 | 850 - 4000 | 100 | 60 - 120 |
Parameters of standard sizes of torque limiter couplings with geometric closure Mayr EAS- Standard
Type of coupling | The limit moment, Nm | Max. speed, rpm | Diameter bushings, mm |
flanged design | |||
0/400.414.0, 0/400.514.0, 0/400.614.0 | 5 - 40 | 6000 | 8 - 20 |
1/400.414.0, 1/400.514.0, 1/400.614.0 | 12 - 100 | 5000 | 11 - 25 |
2/400.414.0, 2/400.514.0, 2/400.614.0 | 25 - 200 | 4000 | 15 - 35 |
3/400.414.0, 3/400.514.0, 3/400.614.0 | 50 - 400 | 3500 | 19 - 45 |
4/400.414.0, 4/400.514.0, 4/400.614.0 | 100 - 800 | 3000 | 25 - 55 |
5/400.414.0, 5/400.514.0, 5/400.614.0 | 175 - 1400 | 2300 | 30 - 65 |
with a short sleeve | |||
0/400.414.5, 0/400.514.5, 0/400.614.5 | 5 - 40 | 6000 | 8 - 20 |
1/400.414.5, 1/400.514.5, 1/400.614.5 | 12 - 100 | 5000 | 11 - 25 |
2/400.414.5, 2/400.514.5, 2/400.614.5 | 25 - 200 | 4000 | 15 - 35 |
3/400.414.5, 3/400.514.5, 3/400.614.5 | 50 - 400 | 3500 | 19 - 45 |
4/400.414.5, 4/400.514.5, 4/400.614.5 | 100 - 800 | 3000 | 25 - 55 |
5/400.414.5, 5/400.514.5, 5/400.614.5 | 175 - 1400 | 2300 | 30 - 65 |
with an extended sleeve | |||
0/400.414.1, 0/400.514.1, 0/400.614.1 | 5 - 40 | 6000 | 8 - 20 |
1/400.414.1, 1/400.514.1, 1/400.614.1 | 12 - 100 | 5000 | 11 - 25 |
2/400.414.1, 2/400.514.1, 2/400.614.1 | 25 - 200 | 4000 | 15 - 35 |
3/400.414.1, 3/400.514.1, 3/400.614.1 | 50 - 400 | 3500 | 19 - 45 |
4/400.414.1, 4/400.514.1, 4/400.614.1 | 100 - 800 | 3000 | 25 - 55 |
5/400.414.1, 5/400.514.1, 5/400.614.1 | 175 - 1400 | 2300 | 30 - 65 |
with elastomeric inserts | |||
0/437.414.0, 0/437.514.0, 0/437.614.0 | 5 - 40 | 6000 | 8 - 20 |
1/437.414.0, 1/437.514.0, 1/437.614.0 | 12 - 100 | 5000 | 11 - 25 |
2/437.414.0, 2/437.514.0, 2/437.614.0 | 25 - 200 | 4000 | 15 - 35 |
3/437.414.0, 3/437.514.0, 3/437.614.0 | 50 - 400 | 3500 | 19 - 45 |
4/437.414.0, 4/437.514.0, 4/437.614.0 | 100 - 800 | 3000 | 25 - 55 |
5/437.414.0, 5/437.514.0, 5/437.614.0 | 175 - 1400 | 2300 | 30 - 65 |
Parameters of standard sizes of synchronous torque limiter couplings with geometric closure Mayr EAS- Standard
Type of coupling | The limit moment, Nm | Max. speed, rpm | Diameter bushings, mm |
flanged design | |||
0/400.403.0, 0/400.503.0, 0/400.603.0 | 5 - 40 | 6000 | 8 - 20 |
1/400.403.0, 1/400.503.0, 1/400.603.0 | 12 - 100 | 5000 | 11 - 25 |
2/400.403.0, 2/400.503.0, 2/400.603.0 | 25 - 200 | 4000 | 15 - 35 |
3/400.403.0, 3/400.503.0, 3/400.603.0 | 50 - 400 | 3500 | 19 - 45 |
4/400.403.0, 4/400.503.0, 4/400.603.0 | 100 - 800 | 3000 | 25 - 55 |
5/400.403.0, 5/400.503.0, 5/400.603.0 | 175 - 1400 | 2300 | 30 - 65 |
with a short sleeve | |||
0/400.403.5, 0/400.503.5, 0/400.603.5 | 5 - 40 | 6000 | 8 - 20 |
1/400.403.5, 1/400.503.5, 1/400.603.5 | 12 - 100 | 5000 | 11 - 25 |
2/400.403.5, 2/400.503.5, 2/400.603.5 | 25 - 200 | 4000 | 15 - 35 |
3/400.403.5, 3/400.503.5, 3/400.603.5 | 50 - 400 | 3500 | 19 - 45 |
4/400.403.5, 4/400.503.5, 4/400.603.5 | 100 - 800 | 3000 | 25 - 55 |
5/400.403.5, 5/400.503.5, 5/400.603.5 | 175 - 1400 | 2300 | 30 - 65 |
with an extended sleeve | |||
0/400.403.1, 0/400.503.1, 0/400.603.1 | 5 - 40 | 6000 | 8 - 20 |
1/400.403.1, 1/400.503.1, 1/400.603.1 | 12 - 100 | 5000 | 11 - 25 |
2/400.403.1, 2/400.503.1, 2/400.603.1 | 25 - 200 | 4000 | 15 - 35 |
3/400.403.1, 3/400.503.1, 3/400.603.1 | 50 - 400 | 3500 | 19 - 45 |
4/400.403.1, 4/400.503.1, 4/400.603.1 | 100 - 800 | 3000 | 25 - 55 |
5/400.403.1, 5/400.503.1, 5/400.603.1 | 175 - 1400 | 2300 | 30 - 65 |
with elastomeric inserts | |||
0/437.403.0, 0/437.503.0, 0/437.603.0 | 5 - 40 | 6000 | 8 - 20 |
1/437.403.0, 1/437.503.0, 1/437.603.0 | 12 - 100 | 5000 | 11 - 25 |
2/437.403.0, 2/437.503.0, 2/437.603.0 | 25 - 200 | 4000 | 15 - 35 |
3/437.403.0, 3/437.503.0, 3/437.603.0 | 50 - 400 | 3500 | 19 - 45 |
4/437.403.0, 4/437.503.0, 4/437.603.0 | 100 - 800 | 3000 | 25 - 55 |
5/437.403.0, 5/437.503.0, 5/437.603.0 | 175 - 1400 | 2300 | 30 - 65 |
Parameters of standard sizes of torque limiter couplings with integrated control sensor Mayr EAS- Standard
Type of coupling | The limit moment, Nm | Max. speed, rpm | Diameter bushings, mm |
flanged design | |||
0/400.401.0, 0/400.501.0, 0/400.601.0 | 5 - 40 | 6500 | 8 - 20 |
1/400.401.0, 1/400.501.0, 1/400.601.0 | 12 - 100 | 4300 | 11 - 25 |
2/400.401.0, 2/400.501.0, 2/400.601.0 | 25 - 200 | 3580 | 15 - 35 |
3/400.401.0, 3/400.501.0, 3/400.601.0 | 50 - 400 | 3000 | 19 - 45 |
4/400.401.0, 4/400.501.0, 4/400.601.0 | 100 - 800 | 2500 | 25 - 55 |
5/400.401.0, 5/400.501.0, 5/400.601.0 | 175 - 1400 | 2050 | 30 - 65 |
6/400.401.0, 6/400.501.0, 6/400.601.0 | 300 - 2400 | 1800 | 40 - 75 |
7/400.401.0, 7/400.501.0, 7/400.601.0 | 500 - 4000 | 1470 | 50 - 100 |
8/400.401.0, 8/400.501.0, 8/400.601.0 | 850 - 6800 | 1250 | 60 - 120 |
9/400.401.0, 9/400.501.0, 9/400.601.0 | 1500 - 12000 | 920 | 70 - 150 |
with a short sleeve | |||
0/400.401.5, 0/400.501.5, 0/400.601.5 | 5 - 40 | 6500 | 8 - 20 |
1/400.401.5, 1/400.501.5, 1/400.601.5 | 12 - 100 | 4300 | 11 - 25 |
2/400.401.5, 2/400.501.5, 2/400.601.5 | 25 - 200 | 3580 | 15 - 35 |
3/400.401.5, 3/400.501.5, 3/400.601.5 | 50 - 400 | 3000 | 19 - 45 |
4/400.401.5, 4/400.501.5, 4/400.601.5 | 100 - 800 | 2500 | 25 - 55 |
5/400.401.5, 5/400.501.5, 5/400.601.5 | 175 - 1400 | 2050 | 30 - 65 |
6/400.401.5, 6/400.501.5, 6/400.601.5 | 300 - 2400 | 1800 | 40 - 75 |
7/400.401.5, 7/400.501.5, 7/400.601.5 | 500 - 4000 | 1470 | 50 - 100 |
8/400.401.5, 8/400.501.5, 8/400.601.5 | 850 - 6800 | 1250 | 60 - 120 |
9/400.401.5, 9/400.501.5, 9/400.601.5 | 1500 - 12000 | 920 | 70 - 150 |
with an extended sleeve | |||
0/400.401.1, 0/400.100.1, 0/400.601.1 | 5 - 40 | 6500 | 8 - 20 |
1/400.401.1, 1/400.100.1, 1/400.601.1 | 12 - 100 | 4300 | 11 - 25 |
2/400.401.1, 2/400.100.1, 2/400.601.1 | 25 - 200 | 3580 | 15 - 35 |
3/400.401.1, 3/400.100.1, 3/400.601.1 | 50 - 400 | 3000 | 19 - 45 |
4/400.401.1, 4/400.100.1, 4/400.601.1 | 100 - 800 | 2500 | 25 - 55 |
5/400.401.1, 5/400.100.1, 5/400.601.1 | 175 - 1400 | 2050 | 30 - 65 |
6/400.401.1, 6/400.100.1, 6/400.601.1 | 300 - 2400 | 1800 | 40 - 75 |
7/400.401.1, 7/400.100.1, 7/400.601.1 | 500 - 4000 | 1470 | 50 - 100 |
8/400.401.1, 8/400.100.1, 8/400.601.1 | 850 - 6800 | 1250 | 60 - 120 |
9/400.401.1, 9/400.100.1, 9/400.601.1 | 1500 - 12000 | 920 | 70 - 150 |
with elastomeric inserts | |||
0/437.401.0, 0/437.501.0, 0/437.601.0 | 5 - 40 | 6500 | 8 - 20 |
1/437.401.0, 1/437.501.0, 1/437.601.0 | 12 - 100 | 4300 | 11 - 25 |
2/437.401.0, 2/437.501.0, 2/437.601.0 | 25 - 200 | 3580 | 15 - 35 |
3/437.401.0, 3/437.501.0, 3/437.601.0 | 50 - 400 | 3000 | 19 - 45 |
4/437.401.0, 4/437.501.0, 4/437.601.0 | 100 - 800 | 2500 | 25 - 55 |
5/437.401.0, 5/437.501.0, 5/437.601.0 | 175 - 1400 | 2050 | 30 - 65 |
with forced disconnection | |||
6/435.401.0, 6/435.501.0, 6/435.601.0 | 300 - 2400 | 1800 | 40 - 75 |
7/435.401.0, 7/435.501.0, 7/435.601.0 | 500 - 4000 | 1470 | 50 - 100 |
8/435.401.0, 8/435.501.0, 8/435.601.0 | 850 - 6800 | 1250 | 60 - 120 |
9/435.401.0, 9/435.501.0, 9/435.601.0 | 1500 - 12000 | 920 | 70 - 150 |
You can buy Mayr EAS-Standard safety couplings, find out the price and more information about the products by contacting our specialists.
