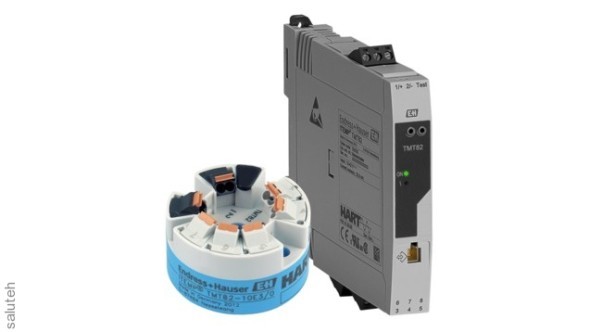

Преобразователь температуры iTEMP TMT82-GAA2AB3A1A1A2

Information about the iTEMP TMT82-GAA2AB3A1A1A2 temperature converter

High accuracy and reliability for use at critical measuring points. High reliability due to sensor diagnostics and self-diagnosis functions.

Improving the accuracy of temperature measurement by individually matching the sensor and the transducer according to the Callendar– van Duzen method. Compatible with a compact LCD display for additional visualization of measured values. Compliance with NAMUR recommendations NE21, NE43, NE89, NE107

Specifications:

• Principle of measurement    Embedded converter
• Entrance    One or two resistance thermometers/thermocouples
• Output signals    4...20mA HART
• Supply voltage    11...42 In the post.current
• Protocol    HART 6.0
• Mounting    into the mold head or onto the DIN rail
