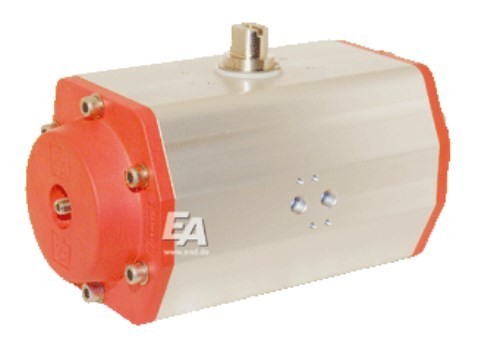

Drive EW55, DIN, F03/05, 8kt.14, pneumatic, spring-resetting

Drive EW55, DIN, F03/05, 8kt.14, pneumatic, spring-resetting

Art.EE620552
The ED/EE series pneumatic rotary actuator provides you with a high-quality pneumatic actuator designed and manufactured by END-Armaturen. The use of proven materials and compliance with high quality requirements guarantee optimal functionality and safety of operation.

Advantages:

• Fast availability of special designs, starting from design, production, assembly and quality control up to 100% "Made in Germany"
• Compact design without dirty corners and edges
• High-quality coatings are available from stock
• High useful pneumatic torque
• Drive shaft and standard stainless steel parts
• Blow-out safe drive shaft
• No dimensional changes for spring return actuators
• Good value for money
• Simple standardized design or installation and connection of signaling and control devices in accordance with EN 12116 (ISO5211)
• Energy transfer through precisely executed involute teeth
• All plastic parts weighing more than 20 g are marked in accordance with our DIN EN ISO 14001 environmental management system.

Description

The rotary actuator is a pneumatic two-piston actuator, which was primarily designed to actuate valves and ball valves. This double action and return spring (single action) are available. The double piston principle provides high torque with minimal external dimensions. The rotation angle can be adjusted by ± 6° using the standard end position adjustment.

design

Due to the double piston principle, the force of the pistons rotating in opposite directions is transmitted to the common gear through two racks rigidly connected to the pistons. This principle provides a linear torque curve throughout the entire stroke. The built-in spring assemblies of simple-acting actuators allow, in addition to simple control, to approach the set position in the event of a failure of compressed air control, as well as voltage control (fault-tolerant).

In our store you can order other versions of pneumatic non-rotating ED/EE actuators and a wide range of accessories:

Discs with less or more torque.
ATEX-approved actuators for use in explosive atmospheres.
Drives with a special surface finish of the housing, for example: black anodized, hard-coated, chemically nickel-plated or with a functional PTFE coating.
