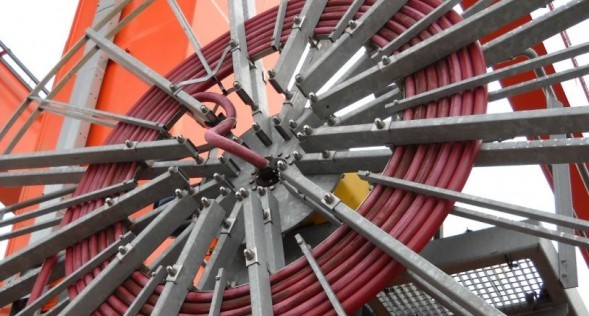

More than 40 years Cavotec Specimas It supplies its products to the world market in the form of drive cable drums, which provide for moving, feeding and returning cables both horizontally and vertically. If necessary, drums of this class are capable of operating in both normal and constant modes. The factories of this manufacturer are present in 5 countries of the world. Highly qualified personnel are engaged in the design, development and production of drums, thanks to which the products Cavotec Specimas It is in demand in various industries. Today, the drive drums are manufactured Cavotec Specimas They work stably in ports, terminals, mines, tunnels and industries around the world. Well-developed logistics infrastructure, operational technical and service support are also necessary conditions for reliable operation.
The design of the drive drums is based on Cavotec Specimas several drive systems of various sizes can be operated, taking into account the desired type of application. Previously, in the process of selecting and manufacturing the required equipment, the customer is offered a choice of various drum layouts, including hydrodynamic systems, torque motors, a direct torque control system according to proprietary technology "Cavotec Torque Control" if we are talking about large drive drums. In 1977 Cavotec Specimas introduced the system "Pull and Store", which made it possible to solve the issue of dangerous cable tension that occurs when cable drums are located at high altitudes. Since then, this system has been successfully applied more than a thousand times.
Technical characteristics of Cavotec Specimas drive drums:
- Cable winding speed: from 46 to 300 m/min;
- Maximum acceleration: 0.2 m/s2;
- Length of the coiled cable: 460 m;
- Installation height: up to 20 m;
- Type of cable winding: spiral, cylindrical;
- Type of gearbox: magnetic coupling, three-phase electric motor;
- The outer diameter of the coil: 58 mm;
- Voltage: 600 V;
- Rated torque: from 160 to 2700 Nm;
- Number of poles: from 4 to 8;
- Operating temperature range: -10 to + 40 °C;
- Protection class: IP 55;
- Weight: 5.1 kg.
