Company Wampfler Today it is one of the largest manufacturers of complexes for the transmission of energy and information data. This manufacturer has considerable experience in the field of design, production, supply, consulting and installation of integrated solutions for the transmission of electricity and information data.

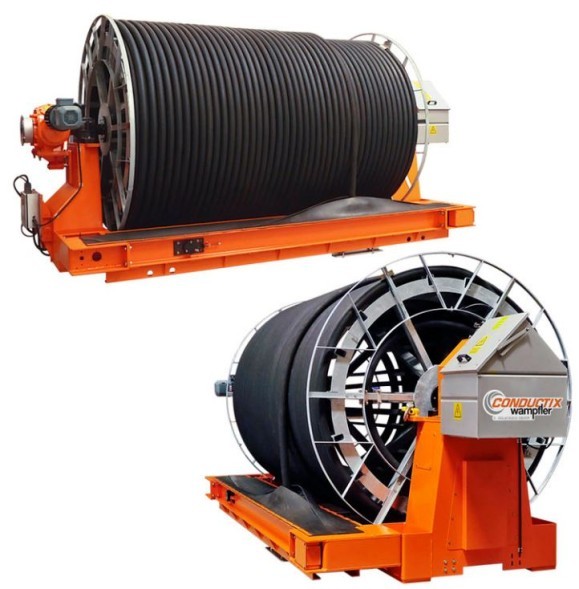

In the drive cable drums Wampfler The LR series uses drums for winding in one or more layers for ultra-long movements, while at the same time the drum designs ensure optimal cooling of cables. In turn, the arrangement of the housings of the drive cable drums allows them to be placed on almost any vehicle. Fields of application of drive cable drums Wampfler LR series: excavators, bulk cargo loaders.
Technical Characteristics of Wampfler LR series drive cable drums:
- The speed of movement: 60 m/min;
- Acceleration of the course: 0.2 m/s2;
- The length of the cable to be wound horizontally: 2000 m;
- The torque of the gearbox: from 1000 to 8500 Nm;
- Drum diameter: 3.3 m;
- Maximum current: from 500 to 1600 A;
- Voltage: 690 V;
- Operating temperature range: -40 to +60 °C.
Attention! Drive coils are used to work with a specific type and length of cable. Our engineers will help you calculate the necessary parameters and select the necessary model for the required application.
You can buy Wampfler LR series cable drives, find out the price and more information about the product by contacting our specialists.
