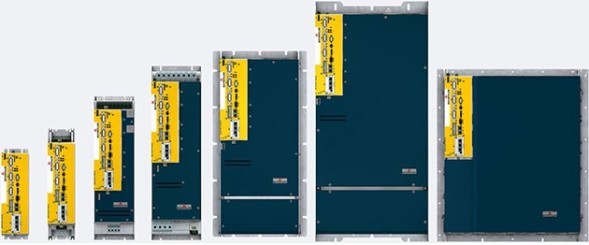

Baumuller B maXX 4400 AC Drives (BM4400)

High-performance servo converters b maXX 4400 They are provided in a monoblock construction design and are designed for a wide range of industrial applications. A large number of additional modules for completing the drive makes it easy to adapt this series to perform automation tasks of various technological processes, covering various levels of system complexity. The modular concept of building functional blocks allows you to quickly assemble the necessary hardware version for a personal order or scale it directly at the operation site if expansion is necessary.

The model range is represented by eight body dimensions, ventilation and water cooling. Remote work on computer output facilities is carried out using the supplied software. The data switching of servos is characterized by a wide range of communication protocols to be installed for the use of an industrial network, support for a wide range of feedback sensor interfaces. To increase energy efficiency, a regenerative power supply unit b maXX 4100 can be used in conjunction with this series.

Technical characteristics of Baumuller Series B maXX 4400 servo converters

• Supply voltage: 3AC 207 - 528 V;
• Electric motor power: 1.1 - 315 kW;
• Output current: 2.5 - 780 A;
• Configuration: single-axis;
• Output frequency: 0 - 450 Hz;
• Switching frequency: 2.4 kHz;
• Permissible overloads: for a short time, 130 - 260% of the nom. current (depending on the standard size);
• Enclosure protection class: IP20, IP00 (for models over 75 kW);
• Interfaces: по запросу EtherCAT, EtherNet, VARAN, CANopen, POWERLINK, ProfiNET, CANsync, Profibus, Sercos;
• Feedback: SinCos encoders with HIPERFACE, EnDat 2.1 and 2.2 interfaces, SSI, resolvers;
• Visualization and customization tools: LED display, 7-segment display to display the current status, PC software;
• Other features and functions: data storage in the drive memory, PLC, safe torque removal (optional).

Optional Baumuller b maXX 4400 drive modules

• I/O expansion boards.
• Modules for connecting industrial networks.
• Modules for connecting feedback sensors.
• Braking resistors.

Parameters of standard sizes of Baumuller servos of the maXX 4400 series b

Regenerative modules: BM4135, BM4145, BM4163

You can buy Baumuller B maXX 4400 series servos, find out the price and more information about the products by contacting our specialists.
