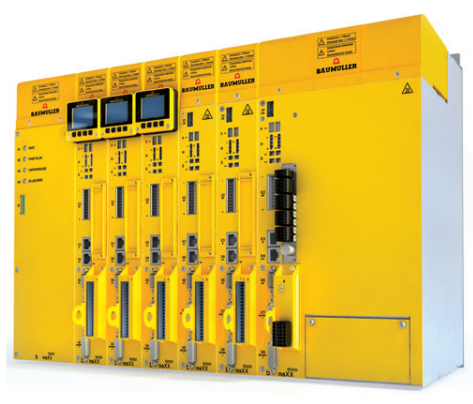

Modular servo drive system Baumuller series b maXX 5000 It is the most flexible and adaptive solution for various applications. The variety of offers is due to the different layout of functional blocks and optional extensions. To provide power to the installation, there are two types of power units, standard and regenerative (recovery of braking energy to increase resource efficiency). Single-axis and dual-axis control modules in a wide range of power values, all of them have built-in memory for data storage.
The compact and easily scalable design provides many advantages in installation and technical equipment. The servo installation is controlled remotely using software, directly. Special attention was paid to safety issues when creating this series, the built-in precautions and functionality comply with the IEC 61800-5-2 quality standard. To maintain the temperature regime, depending on the size of the drive, air and water heat removal systems are integrated.
Technical characteristics of the Baumuller B maXX 5000 series servo converters
- Supply voltage: 3AC 207 - 528 V;
- Electric motor power: 1.6 - 136 kW;
- Output current: 2.4 - 36 A;
- Configuration: multi-axis;
- Output frequency: 0 - 599 Hz;
- Permissible overloads: for a short time, up to 200-300% of the nom. current;
- Enclosure protection class: IP20;
- Interfaces: on request EtherCAT, VARAN, CANopen, POWERLINK, ProfiNET RT/IRT, EtherCAT;
- Feedback: HIPERFACE, EnDat 2.1, SSI, Quadrature and sine incremental sensor, Resolver, EnDat 2.2, HIPERFACE DSL;
- Visualization and customization tools: LED display, 7-segment display to display the current status, PC software;
- Other features and functions: saving data to the drive memory, access authorization, safe torque removal function, safe stop, automatic restart and others.
Optional Baumuller b maXX 5000 drive modules
- I/O expansion board.
- Modules for connecting industrial networks.
- Brake control.
- Contactors.
Parameters of standard sizes of Baumuller servos of the maXX 5000 series b
Power modules
Type of drive | Power DC buses, kW | Max. power DC buses, kW |
BM5031 | 10 | 15 |
BM5032 | 18 | 27 |
BM5043 | 36 | 54 |
BM5044 | 70 | 70 |
BM5072 | 70 | 140 |
BM5073 | 90 | 180 |
BM5074 | 150 | 300 |
BM5075 | 200 | 300 |
Type of drive | Power DC buses, kW | Max. power DC buses, kW |
BM5143 | 36 | 52 |
BM5174 | 64 | 96 |
BM5182 | 70 | 140 |
BM5183 | 90 | 180 |
BM5192 | 150 | 300 |
BM5193 | 200 | 300 |
Control modules (single- and two-axis units)
Type of drive | Current, A | Max. current, A | Power motor, kW |
BM5323 | 2 x 3 | 2 x 9 | 2 x 1.6 |
BM5325 | 2 x 6 | 2 x 18 | 2 x 3.2 |
BM5326 | 12 | 24 | 6,5 |
BM5327 | 20 | 40 | 10,8 |
BM5328 | 30 | 60 | 16,2 |
BM5331 | 2 x 12 | 2 x 24 | 2 x 6.5 |
BM5332 | 2 x 20 | 2 x 40 | 2 x 10.8 |
BM5333 | 2 x 30 | 2 x 60 | 2 x 16.2 |
BM5334 | 40 | 60 | 21,6 |
BM5335 | 60 | 90 | 32,4 |
BM5372 | 90 | 180 | 48,6 |
BM5373 | 120 | 240 | 64,8 |
BM5374 | 150 | 300 | 81,0 |
BM5375 | 180 | 360 | 97,2 |
BM5382 | 210 | 360 | 113,4 |
BM5383 | 250 | 375 | 135,0 |
