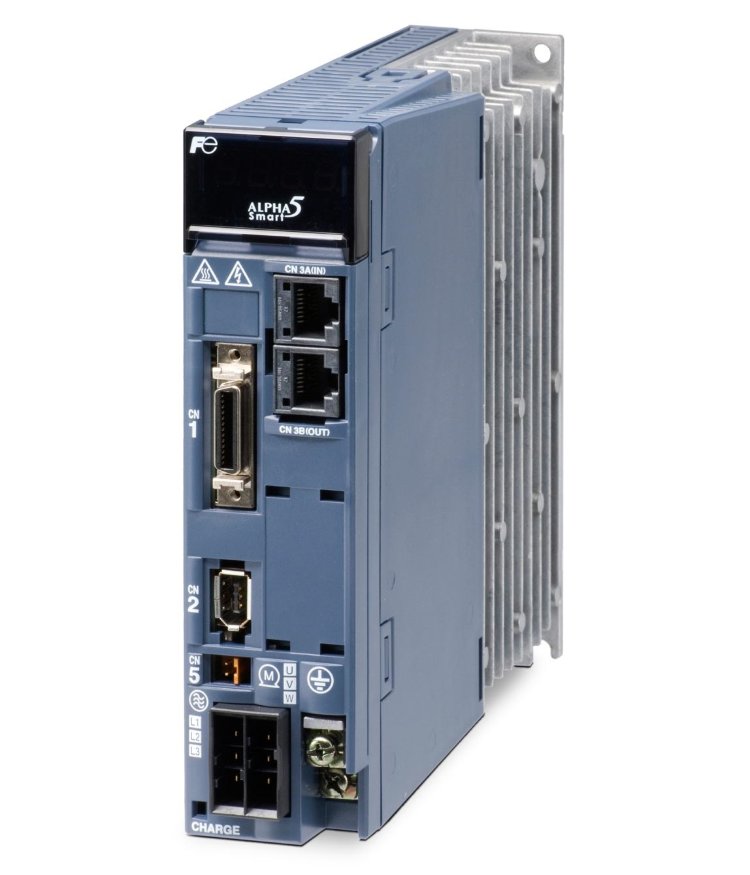

Fuji Electric Alpha 5 Smart AC Drives

Servo converters Fuji Electric series Alpha 5 Smart This is a highly intelligent control system, the main task of which is to ensure the most accurate and efficient control of the parameters of the slave devices. They are suitable for working with engines with speeds up to 6000 rpm, high-resolution feedback using absolute and incremental sensors.

An excellent solution for driving conveyors, packaging machines, coordinate tables, etc. Excellent indicators of the stability of production operations, high efficiency and process dynamics. Wide functionality for flexibility and multitasking settings. A convenient portable remote control for assigning commands and copying data (optional).

Several types of servomotors are available to complete this series: GYS with ultra low inertia, medium inertia - GYB (3000 rpm), GYH (2000 rpm) and GYG (2000 rpm and 1500 rpm). All of them have a sealed frame with a degree of protection from dust and water IP67 and can be equipped with a brake block.

Technical characteristics of Fuji Electric Alpha 5 Smart Series Servo Converters

• Supply voltage: 1/3AC 200 - 240 V;
• Power (electric motor): 0.05 - 5 kW;
• Max. speed (of the electric motor): up to 6000 rpm;
• Frequency response: 1500 Hz;
• Permissible overloads: 300% of the nominal values for 3 seconds;
• Configuration: single-axis;
• Control modes: positioning, position, speed, torque;
• Interfaces: Modbus RTU, digital I/O channels, pulse/analog input ;
• Feedback: encoders with a resolution of 18-bit (absolute and incremental 262,144 pulses), 20-bit (incremental 1,048,576 pulses) ;
• Visualization and customization tools: optional control panel with 4-character display and push-button installation, operation and configuration using a PC;
• Other features and functions: auto-tuning, 15 setting parameters (for setting position, speed, acceleration and deceleration times, times, etc.), vibration suppression, torque limitation, auto-start and others.

Optional Alpha 5 Smart Drive Modules

• Remote control (setting up and copying data).
• External braking resistor.
• ABS backup battery.

Parameters of standard sizes of Alpha 5 Smart servos

You can buy Fuji Electric Alpha 5 Smart servos, find out the price and more information about the products by contacting our specialists.
