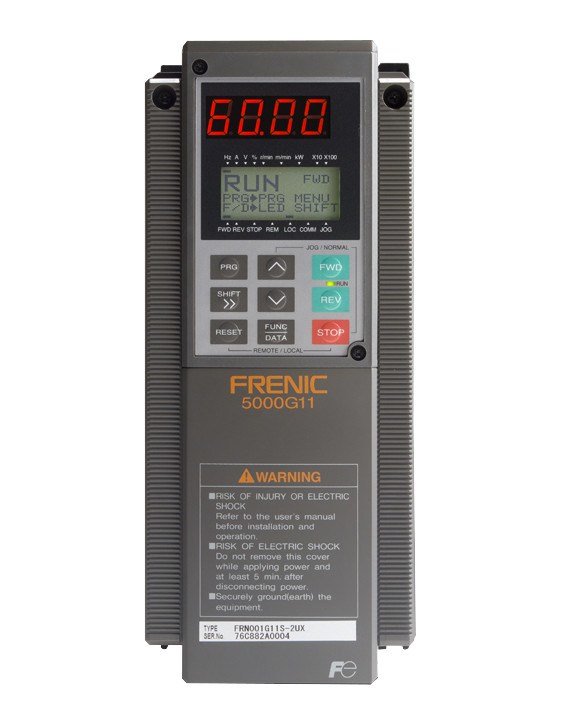

Electric drives Fuji Electric FRENIC 5000G11 they provide maximum output and dynamics of processes, they are versatile in application and adaptive to various conditions. The outstanding performance of the computing power of the electronic unit used gives high levels of productivity and guarantees an excellent system response to any manipulation.
For efficient control of electric motors, vector technology with an open or closed circuit is used (when using an additional module). High starting torque (up to 200%), smooth acceleration and braking.
A variety of configuration functions and tools are used to regulate work processes. User-friendly interface for entering commands and controlling the drive, online tracking. Two modes of installation overload capacity.
Technical characteristics of Fuji Electric FRENIC 5000G11 electric drives
- Supply voltage: 3AC 380 - 480 V;
- Power of electric motors: 0.4 - 400 kW;
- Output current: 1.5 - 520 A;
- Management methods: vector sensorless (touch with optional PG module);
- Output frequency: 0.1 - 400 Hz;
- Permissible overloads: the normal mode is 110% of the nom. current for 60 seconds, heavy - 150% of nom. current for 60 seconds and 200% (over 30 kW - 180%) of nom. current for 0.5 seconds;
- Enclosure protection class: IP40, IP00 (on request IP20);
- Interfaces: RS-485, аналоговые и цифровые каналы, опционально Profibus-DP, Interbus-S, DeviceNet, Modbus Plus, CANopen;
- Visualization and customization tools: remote control with 7-segment and LCD display, push-button navigation, LED display, software for control and parameterization using a personal computer;
- Other features and functions: 16 presets for speed, 7 timer modes, settings for working with rotary mechanics, PID controller, automatic power saving, auto restart, data copying and others.
Optional FRENIC 5000G11 drive modules
- Remote control.
- I/O expansion boards.
- Modules for working with feedback.
- Modules for connecting industrial networks.
- Synchronization modules.
- Memory.
- Braking resistors.
- DC chokes.
- EMC filters.
- Mounting adapter for connecting the external cooling system.
Parameters of standard sizes of FRENIC 5000G11 electric drives
Type of drive | Power, kW | Current, A | ||
norm. mode | heavy. mode | norm. mode | heavy. mode | |
FRN0.4G11S-4 | - | 0,40 | - | 1,5 |
FRN0.75G11S-4 | - | 0,75 | - | 2,5 |
FRN1.5G11S-4 | - | 1,5 | - | 3,7 |
FRN2.2G11S-4 | - | 2,2 | - | 5,5 |
FRN4.0G11S-4 | - | 4,0 | - | 9,0 |
FRN5.5G11S-4 | 7,5 | 5,5 | 16,5 | 13 |
FRN7.5G11S-4 | 11 | 7,5 | 23 | 18 |
FRN11G11S-4 | 15 | 11 | 30 | 24 |
FRN15G11S-4 | 18,5 | 15 | 39 | 30 |
FRN18.5G11S-4 | 22 | 18,5 | 44 | 39 |
FRN22G11S-4 | 30 | 22 | 60 | 45 |
FRN30G11S-4 | 37 | 30 | 60 | 60 |
FRN37G11S-4 | 45 | 37 | 91 | 75 |
FRN45G11S-4 | 55 | 45 | 112 | 91 |
FRN55G11S-4 | 75 | 55 | 150 | 112 |
FRN75G11S-4 | 90 | 75 | 176 | 150 |
FRN90G11S-4 | 110 | 90 | 210 | 176 |
FRN110G11S-4 | 132 | 110 | 253 | 210 |
FRN132G11S-4 | 160 | 132 | 304 | 253 |
FRN160G11S-4 | 200 | 160 | 377 | 304 |
FRN200G11S-4 | 220 | 200 | 415 | 377 |
FRN220G11S-4 | 280 | 220 | 520 | 415 |
FRN280G11S-4 | 315 | 280 | - | 520 |
FRN315G11S-4 | 400 | 315 | - | - |
You can buy Fuji Electric FRENIC 5000G11 frequency converters, find out the price and more information about the products by contacting our specialists.
