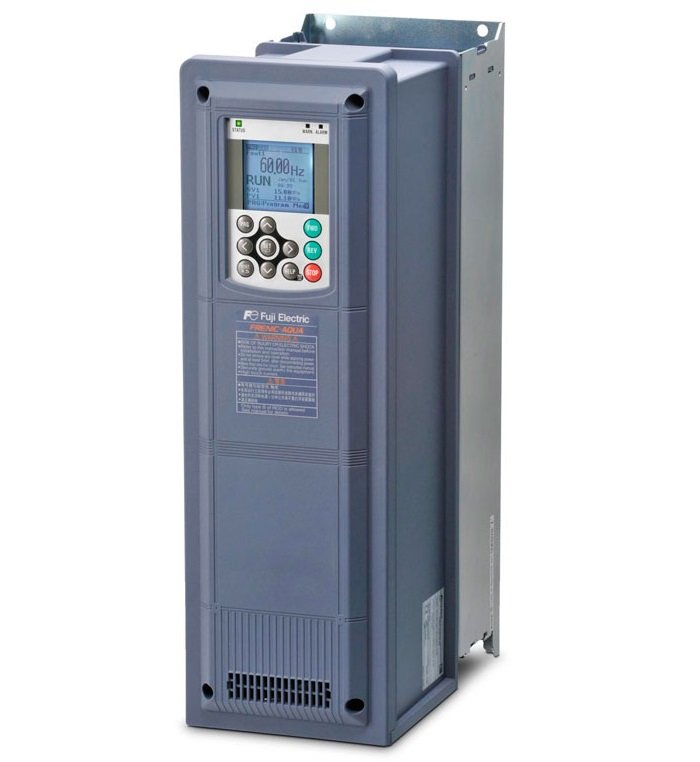

Fuji Electric FRENIC-AQUA AC Drives

A wide range of multifunctional AC electric drives FRENIC-AQUA productions Fuji Electric designed specifically to solve the problems of water supply, water treatment and irrigation systems. According to the selected application profile, they are equipped with a wide range of profile capabilities for flexible and adaptive configuration of the effective functioning of the equipment.

Using modern management technologies, this novelty can regulate water flows as efficiently as possible, eliminating unproductive actions and their subsequent costs. Thus, the most rational approach to the consumption of energy resources and savings in production costs are ensured.

Slim book design, clear visual interface and flexible switching connection. The model range uses two configuration options depending on the power range:

• standard sizes up to 90 kW, inclusive, with a degree of protection of the housing from water and dust of two levels to choose from, built-in EMC filters and DC chokes;
• standard sizes over 90 kW with open architecture, built-in EMC filters (external DC chokes are applicable).

Technical characteristics of Fuji Electric FRENIC-AQUA electric drives

• Supply voltage: 3AC 380 - 480 V;
• Power of electric motors: 0.75 - 710 kW;
• Output current: 2.5 - 1370 A;
• Management methods: scalar, vector (sensorless);
• Output frequency: 0.1 - 120 Hz;
• Permissible overloads: 110% of the nom. current for a duration of 60 seconds;
• Enclosure protection class: IP21, IP55, IP00;
• Interfaces: RS485, USB-разъем, Modbus RTU, BACnet, Metasys N2, аналоговые и цифровые каналы, опционально PROFIBUS, CC-Link, CANopen, LonWorks, DeviceNet, Ethernet и другие;
• Visualization and customization tools: LCD display with push-button navigation (Russian), software for control and parameterization using a personal computer;
• Other features and functions: slim design, energy-saving function, cascade mode, dry running detection, flow minimization, autonomous operation, 4 PID controllers, built-in EMC filter, real-time clock, fire mode, password protection and others.

Optional FRENIC-AQUA drive modules

• I/O expansion boards.
• Modules of industrial communication protocols.
• Filters to protect against interference.
• Brake resistors and interrupters.
• DC and AC chokes.

Parameters of standard sizes of FRENIC-AQUA electric drives

You can buy Fuji Electric FRENIC-AQUA frequency converters, find out the price and more information about the products by contacting our specialists.
