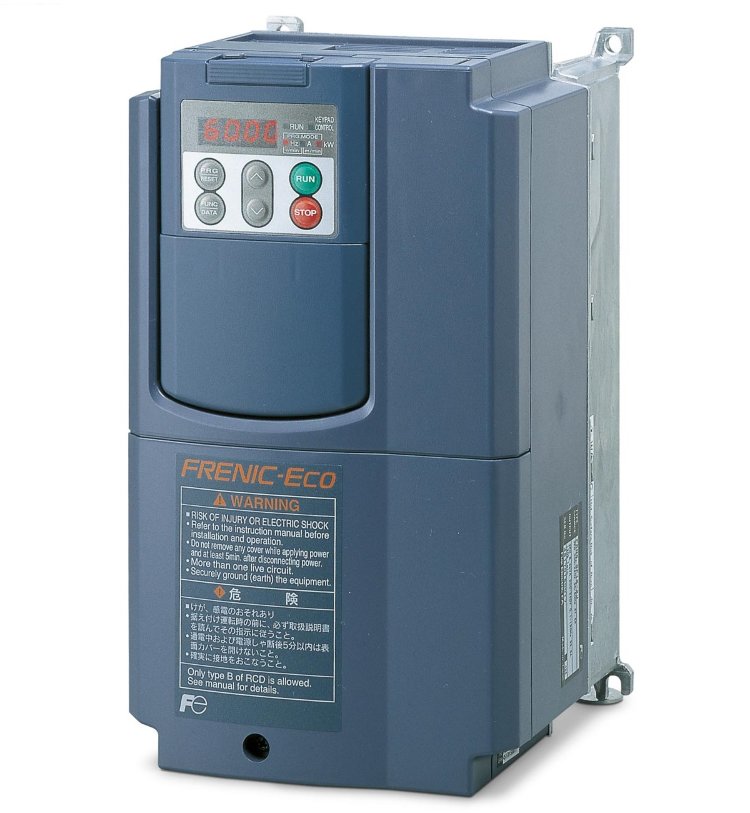

Fuji Electric FRENIC-Eco AC Drives

AC electric drives FRENIC-Eco productions Fuji Electric They are designed to effectively perform tasks related to the management of ventilation systems and pumping equipment. Improved opportunities for saving electricity while maintaining the proper level of productivity for the rational use of consumed resources.

Reliability and stability of operation due to the use of high-quality components with a service life of at least 10 years. Easy maintenance due to easy access to all replaceable components.

Built-in profile tools and functions help to build the most effective management and interaction policy of the system, optimally rebuild the process and monitor the current state, eliminate the negative impact of failures and technical errors. For clarity, a keypad for data entry and monitoring with a screen is located on the front panel.

The series is available in four types of factory configuration:

FRN-…F1S-… - standard version of the execution

FRN-…F1H-… - with built-in DC choke

FRN-…F1E-… - with built-in EMC filter

FRN-…F1L/D-… - with an increased level of protection against dust and moisture (IP54)

Technical characteristics of Fuji Electric FRENIC-Eco electric drives

• Supply voltage: 3AC 200 - 240 V, 380 - 480 V;
• Power of electric motors: 0.75 - 560 kW;
• Output current: 2.5 - 1040 A;
• Management methods: scalar;
• Output frequency: 0.1 - 120 Hz;
• Permissible overloads: 120% of the nom. current for a duration of 60 seconds;
• Enclosure protection class: IP20, IP00, IP54;
• Interfaces: RS485, analog and digital channels, optional PROFIBUS, CC-Link, LonWorks, DeviceNet;
• Visualization and customization tools: a remote control with a 7-segment display and push-button navigation (an optional version of the panel with an LCD screen and additional functions is available), LED indication, software for monitoring and parameterization using a personal computer;
• Other features and functions: energy-saving function, automatic restart, pick-up, low water level monitoring, low torque detection, error detection, PID controller and others.

Optional FRENIC-Eco drive modules

• A control panel with advanced functionality and an additional LCD screen.
• Mounting kits for the installation of an external cooling system.
• Modules of industrial communication protocols.
• Filters to protect against interference.
• DC and AC chokes.

Parameters of standard sizes of FRENIC-Eco electric drives

voltage 200 V, 3 phases

voltage 400 V, 3 phases

You can buy Fuji Electric FRENIC-Eco frequency converters, find out the price and more information about the products by contacting our specialists.
