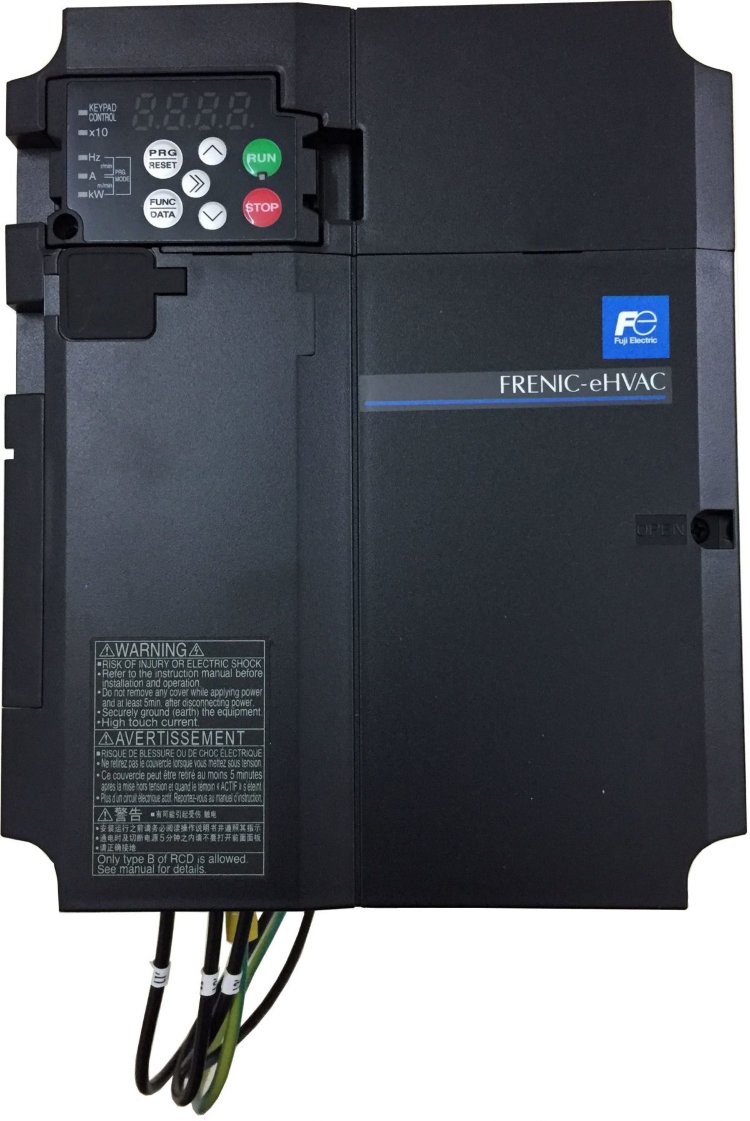

Fuji Electric FRENIC-eHVAC AC Drives

Operation of frequency converters FRENIC-eHVAC from the company Fuji Electric It is aimed at the most rational use of energy resources in the processes of maintaining comfortable climatic conditions in the premises. Their range of applications includes fans, air conditioning systems, and pumping units. They are designed to control asynchronous and synchronous motors, and sensorless data processing technology is used.

Real savings due to optimized management, taking into account all the nuances of specific production projects, fine tuning, configuration flexibility and ease of handling, all this makes this series a very profitable offer in the target segment. Unique profile configuration tools, programming capabilities up to 200 steps.

All models are equipped with a C2/C3 filter to ensure electromagnetic compatibility.

Technical characteristics of Fuji Electric FRENIC-eHVAC electric drives

• Supply voltage: 3AC 380 - 480 V;
• Power of electric motors: 0.75 - 280 kW;
• Output current: 2.5 - 520 A;
• Management methods: scalar, vector sensorless;
• Output frequency: 0.1 - 120 Hz;
• Permissible overloads: 110% nom. current for a duration of 60 seconds;
• Enclosure protection class: IP21, IP00;
• Interfaces: RS485, USB-разъем, Modbus RTU, BACnet, Metasys N2, аналоговые и цифровые каналы, опционально PROFIBUS, CC-Link, CANopen, LonWorks, DeviceNet и другие;
• Visualization and customization tools: 7-segment LED display with control buttons, optional remote control with LCD screen and push-button navigation (Russian), software for control and parameterization using a personal computer;
• Other features and functions: energy-saving function, programming up to 200 steps, 2 PID controllers, cascade control, built-in EMC filter, real-time clock, fire mode, password protection and others.

Optional FRENIC-eHVAC drive modules

• I/O expansion boards.
• Modules of industrial communication protocols.
• Connection of the temperature sensor.
• Braking resistors.
• A control panel with advanced functionality.
• DC and AC chokes.

Parameters of standard sizes of FRENIC-eHVAC electric drives

You can buy Fuji Electric FRENIC-eHVAC frequency converters, find out the price and more information about the products by contacting our specialists.
