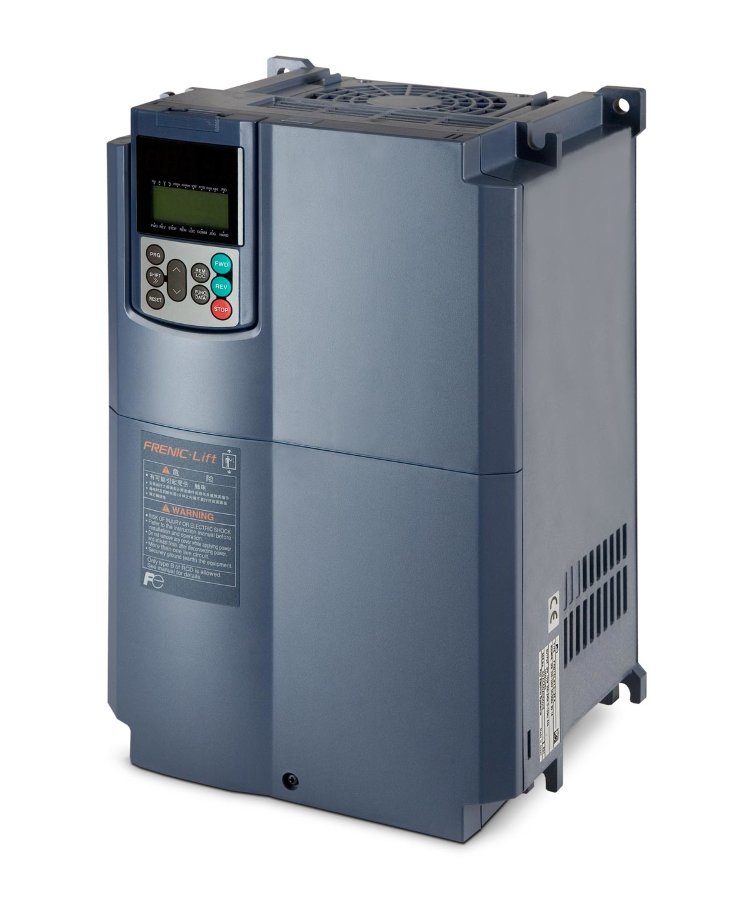

AC drives FRENIC-Lift from the company Fuji Electric designed to work with elevator installations in buildings. A wide range of specialized functions and controls for process optimization, automated operation, comfortable movement and ease of maintenance. The design and components are selected in such a way as to ensure the longest possible service life without technical replacements.
Excellent overcurrent resistance, improved response and correspondingly high performance dynamics. Optionally, boards are available to expand the compatibility of the drive with various types of feedback sensors, filters to protect against electromagnetic interference, as well as a control panel with a Russified menu and a visual LCD screen.
Technical characteristics of Fuji Electric FRENIC-Lift electric drives (FRN-LM1)
- Supply voltage: 1AC 200-240V, 3AC 200-240V, 380 - 480V;
- Power of electric motors: 2.2 - 45 kW;
- Output current: 9 - 91 A;
- Management methods: vector (touch);
- Output frequency: 0.1 - 120 Hz;
- Permissible overloads: 200% of the nom. current for 10 seconds;
- Enclosure protection class: IP20, IP00;
- Interfaces: RS-485, Modbus RTU, analog and digital channels, optional CAN Bus;
- Visualization and customization tools: optionally, a remote control with a 7-segment display and push-button navigation or a version of the panel with an LCD screen and additional functions, LED indication, software for monitoring and parameterization using a personal computer;
- Other features and functions: brake control, 10 acceleration/braking curve settings, 14 S-shaped ramp settings, safe torque shutdown, rollback prevention, emergency mode, automatic cooling control and others.
Optional FRENIC-Lift drive modules (FRN-LM1)
- The control panel is standard or with advanced features.
- Modules for connecting various feedback interfaces.
- Modules of industrial communication protocols.
- Braking resistors.
- DC chokes.
Parameters of standard sizes of FRENIC-Lift electric drives (FRN-LM1)
voltage 200 V, 1 phase
Type of drive | Power, kW | Current, A |
FRN-2.2LM1S-7 | 2,2 | 11 |
voltage 200 V, 3 phases
Type of drive | Power, kW | Current, A |
FRN-5.5LM1S-2 | 5,5 | 27 |
FRN-7.5LM1S-2 | 7,5 | 37 |
FRN-11LM1S-2 | 11 | 49 |
FRN-15LM1S-2 | 15 | 63 |
FRN-18.5LM1S-2 | 18,5 | 74 |
FRN-22LM1S-2 | 22 | 90 |
voltage 400 V, 3 phases
Type of drive | Power, kW | Current, A |
FRN-4.0LM1S-4 | 3,7 | 9,0 |
FRN-5.5LM1S-4 | 5,5 | 13,5 |
FRN-7.5LM1S-4 | 7,5 | 18,5 |
FRN-11LM1S-4 | 11 | 24,5 |
FRN-15LM1S-4 | 15 | 32 |
FRN-18.5LM1S-4 | 18,5 | 39 |
FRN-22LM1S-4 | 22 | 45 |
FRN-30LM1S-4 | 30 | 60 |
FRN-37LM1S-4 | 37 | 75 |
FRN-45LM1S-4 | 45 | 91 |
You can buy Fuji Electric FRENIC-Lift frequency converters (FRN-LM1), find out the price and more information about the products by contacting our specialists.
