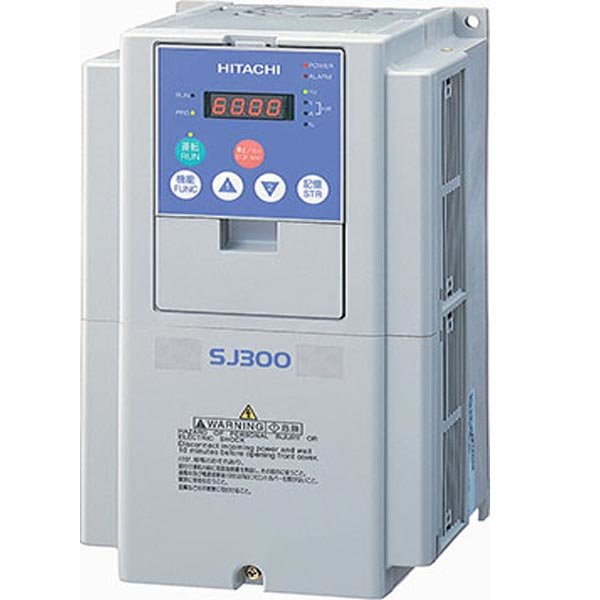

Hitachi SJ300 AC Drives

Converters SJ300 from the company Hitachi They are versatile in use and have in their arsenal a wide range of power models for capacities up to 400 kW. Thanks to the advanced capabilities of sensorless vector control, a high level of starting torque was achieved. Also, this series has excellent performance at low speeds, stable and accurate operations. Very compact dimensions in its segment, maximum ease of maintenance.

Numerous built-in algorithms and functions make it easy to achieve the desired result and adapt the drive to perform specific operational tasks. In addition to the standard version, the operator panel can also include a potentiometer and a data backup option.

Attention! Currently, this series has been discontinued and replaced with a new generation of SJ700/SJ700D/SJ700B products.

Technical characteristics of Hitachi SJ300 electric drives

• Supply voltage: 3AC 380 - 480 V;
• Power of electric motors: 0.75 - 400 kW;
• Output current: 2.5 - 800 A;
• Management methods: scalar, vector (sensorless, touch with optional SJ-FB module);
• Output frequency: 0.1 - 400 Hz;
• Permissible overloads: up to 150% of the nom. current for 60 seconds (up to 180% - 0.5 seconds);
• Enclosure protection class: IP20, IP00;
• Interfaces: RS485, Modbus RTU, optional DeviceNet, PROFIBUS, LONWORKS, ;
• Visualization and customization tools: control panel with display and push-button navigation (optional versions with data copying and potentiometer), LED display, optional software for monitoring and parameterization using a personal computer;
• Other features and functions: free V/f setting, control of up to three motors, PID controller, AVR function, restart and others.

Hitachi SJ300 I/O Configuration

• Analog: 3 inputs and 2 outputs;
• Digital: 8 inputs and 5 outputs;
• relay: 2 outputs;
• connection of thermistors.

Optional Hitachi SJ300 drive modules

• I/O expansion boards.
• Modules of industrial communication protocols.
• Additional anti-interference filters.
• Braking resistors.
• Input/output channel reactors.

Parameters of standard sizes of Hitachi SJ300 electric drives

You can buy Hitachi SJ300 frequency converters, find out the price and more information about the products by contacting our specialists.
