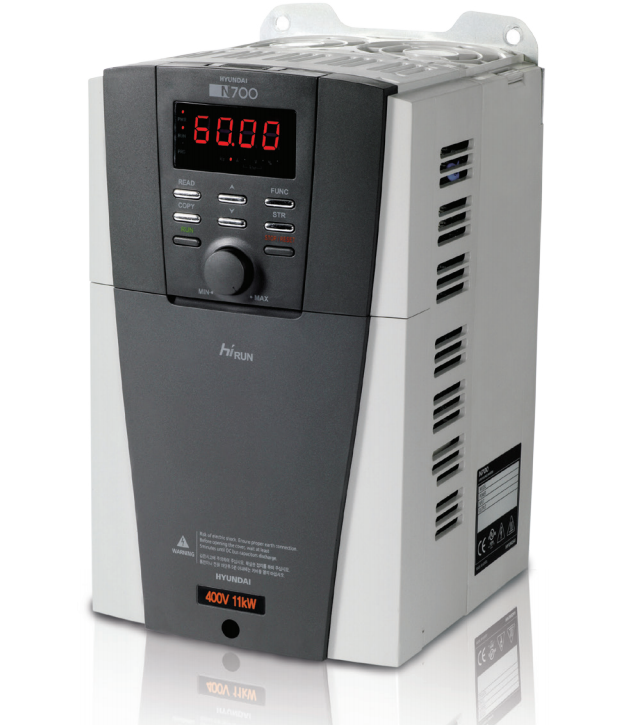

Hyundai Heavy Industries N700V AC Drives

Universal and multifunctional AC electric drives of the series N700V from the company Hyundai They cover a range of engine capacities up to 132 kW. Vector sensorless and sensor control technology is used to adjust the speed parameters of electric motors. For the most efficient operation of the system, fine-tuning of process management and operational safety, this line is equipped with a rich arsenal of tools for setting up, monitoring and protecting equipment.

The improved functionality of the N700V series allows the process to be carried out at the proper level of quality even at very low speeds, and the speed of command control gives maximum performance in the shortest possible time. The safety system has also been improved, providing reliable protection against negative and dangerous consequences of electrical or thermal overload, control signal errors.

Extensive automatic and manual adjustment capabilities, high application efficiency, compact design, ease of use and maintenance make the N700V a popular offer for a wide variety of applications, in particular for lifting equipment, compressors, winding and unwinding plants, textile machines, cutters, presses, etc.

Technical characteristics of Hyundai N700V series converters

• Supply voltage: 3AC 380 - 480 V;
• Electric motor power: 5.5 - 132 kW;
• Output current: 12 - 260 A;
• Management methods: vector sensorless and using feedback sensors;
• Output frequency: 0.01 - 400 Hz;
• Permissible overloads: up to 150% of the nom. current for 60 seconds;
• Enclosure protection class: IP20, IP00;
• Built-in interfaces: RS485;
• Visualization and customization tools: Push-button LED display, LED indication;
• Built-in functions: auto-configuration, monitoring (24 parameters), acceleration/deceleration process settings, acceleration stop setting, 16 presets for speeds, 7 values of arbitrary v/f characteristics, push operation, automatic voltage correction, configurable restart, equipment safety measures in case of overload, communication errors, overheating, short circuits and others.

Optional N700V drive modules

• The operator's remote control.
• EMC filters.
• AC and DC chokes.
• Braking resistors.

Parameters of standard sizes of electric drives Hyundai N700V

You can buy Hyundai N700V frequency converters, find out the price and more information about the products by contacting our specialists.
