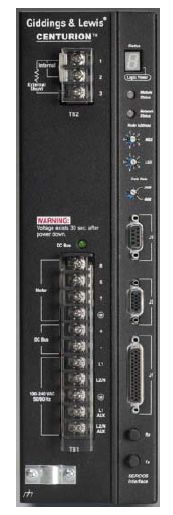

Universal series servos Centurion DSM /DSA from Kollmorgen They can work with both brushless servomotors and asynchronous motors. Fully digital control of current, position and speed. Flexible configuration for a wide range of production applications. A user-friendly Windows-based interface for configuring and operating using a PC, displaying the current status on the front panel using the display and alarm LEDs.
Both series are based on common operating principles, but differ in functional extensions, power data and distinctions in capabilities for optimal selection of a suitable drive. The DSA series has the optional ability to use SERCOS communication to synchronize up to 32 axes. You can learn more about the differences and features of the two series from the attached catalog.
Attention! This system is technically outdated and is only available for replacement, we recommend paying attention to modern Kollmorgen drives.
Technical characteristics of Kollmorgen Centurion DSM /DSA servo converters
- Supply voltage: DSM 1AC 100-240V, DSA 1/3AC 100-258V ;
- Power: DSM 1 - 15 kW, DSA 0.5 - 22 kW;
- Output current: DSM 5 - 65 A, DSA 2.5 - 47 A;
- Max. Output current: DSM 5 - 65 A, DSA 2.5 - 47 A;
- Configuration: single-axis;
- Interfaces: RS-232/485, SERCOS (DSA only) ;
- Feedback: resolvers, high-resolution encoders;
- Visualization and customization tools: display, LED indication, setting via PC interface;
- Other features and functions: DSM - 8 presets for positions, speeds or torque, fully digital control, removable memory module, DC bus; DSA - fully digital control of current, speed and position, 64 presets for indexing movement, oscilloscope, positioning of stand-alone applications.
Optional Kollmorgen Centurion DSM /DSA drive modules
- Modules of industrial networks.
Parameters of standard sizes of Kollmorgen servos of the Centurion DSM/DSA series
The DSM series
Type of drive | Current, A (1AC /3AC) | Max. current, A (1AC /3AC) | Power, kW (1AC /3AC) |
DSM110 | 5 /- | 10 /- | 1,0 /- |
DSM120 | 10 /- | 20 /- | 2,0 /- |
DSM130 | 15 /- | 30 /- | 3,0 /- |
DSM175 | 15 /35 | 50 /35 | 3,0 /7,5 |
DSM1150 | - /65 | - /150 | - /15 |
DSA series
Type of drive | Current, A | Max. current, A | Power, kW (at 115 V /230 V) |
DSA007-230-x | 2,5 | 7,5 | 0,25 /0,50 |
DSA015-230-x | 5 | 15 | 0,5 - 1,0 |
DSA030-230-x | 10 | 30 | 1,0 /2,0 |
DSA130-230-x | 15 | 30 | 1,5 /3 |
DSA175-230-x | 35 | 75 | 3,75 /7,5 |
DSA1150-230-x | 65 | 150 | 7,5 /15 |
DSA014-460-x | 7 | 14 | 1,5 /3,0 |
DSA022-460-x | 11 | 22 | 2,5 /5,0 |
DSA046-460-x | 23 | 46 | 5,0 /10 |
DSA068-460-x | 34 | 68 | 7,5 /15 |
DSA094-460-x | 47 | 94 | 11 /22 |
You can buy Kollmorgen servos of the Centurion DSM /DSA series, find out the price and more information about the products by contacting our specialists.
