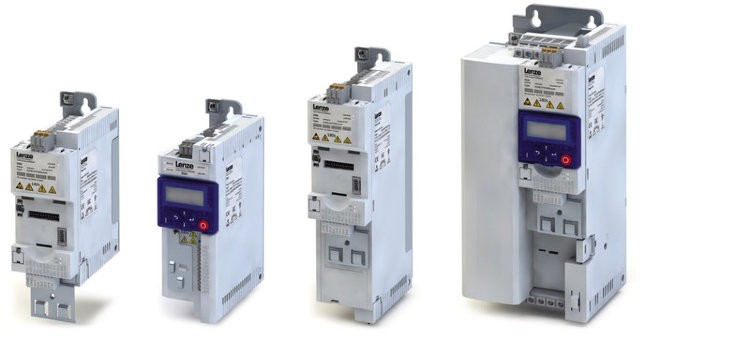

New from Schilke series i500 It is a converter with extremely compact dimensions and at the same time has high performance. Its width is only 6 cm and its depth is 13 cm, which significantly saves working space. Exceptional quality of execution, great opportunities to expand the functionality by adding various design modules.
The i500 drive is easy to set up, modern design allows quick connection and adjustment of operating parameters, gas-free installation.
The converter can be configured in three ways: via the control panel, using a smartphone app, or using the EASY Starter toolkit
A wide range of applications, especially for equipping drives of ventilation and pumping systems, conveyor lines, hoists, winding machines, shapers, machining tools, etc.
Technical characteristics of the Lenze i500 electric drive
Nominal values of voltage, power and current:
- 1 phase, 230 V, 0.25 - 2.2 kW;
- 1 or 3 phases, 230 V, 0.25 - 5.5 kW;
- 3 phases, 400 V, 0.37 - 75.0 kW.
Characteristic features of the converter:
- high energy efficiency class of work - IE2;
- setting up the operation of three-phase AC motors with automatic data identification
- V/f control (linear, quadratic);
- Extensive possibilities for diagnosis and monitoring of the condition;
- Sensorless vector control (SLV) (up to 45 kW);
- Sensorless vector control of synchronous motors (SLPSM) (up to 45 kW);
- feedback control of servo equipment (SC-ASM) (up to 45 kW);
- Feedback using the HTL encoder;
- speed testing with slip compensation;
- VFCeco mode for energy saving (up to 45 kW);
- freely assignable menu;
- S-shaped ramps for smooth acceleration;
- Flexible I/O configuration;
- safe torque shutdown (STO).
Configuration of inputs/outputs of the Lenze i500 electric drive
- Digital inputs/outputs (5/1), analog inputs/outputs (2/1), relays (optional for i550 modification);
- Interfaces: CANopen, EtherCAT, EtherNET/IP, Modbus, PROFIBUS, PROFINET;
Nominal characteristics of standard sizes of Lenze i500 converters
| Type of converter | Power, kW | Current, A | Voltage, V |
| i510-C0.25/230-1 | 0,25 | 1,7 | 1 phase, 170 .. 264 (with RFI filter) |
| i510-C0.37/230-1 | 0,37 | 2,4 | |
| i510-C0.55/230-1 | 0,55 | 3,2 | |
| i510-C0.75/230-1 | 0,75 | 4,2 | |
| i510-C1.1/230-1 | 1,1 | 6 | |
| i510-C1.5/230-1 | 1,5 | 7 | |
| i510-C2.2/230-1 | 2,2 | 9,6 | |
| i550-C0.25/230-1 | 0,25 | 1,7 | |
| i550-C0.37/230-1 | 0,37 | 2,4 | |
| i550-C0.55/230-1 | 0,55 | 3,2 | |
| i550-C0.75/230-1 | 0,75 | 4,2 | |
| i550-C1.1/230-1 | 1,1 | 6 | |
| i550-C1.5/230-1 | 1,5 | 7 | |
| i550-C2.2/230-1 | 2,2 | 9,6 | |
| i510-C0.25/230-2 | 0,25 | 1,7 | 1 or 3 phases, 170 .. 264 (without RFI filter) |
| i510-C0.37/230-2 | 0,37 | 2,4 | |
| i510-C0.55/230-2 | 0,55 | 3,2 | |
| i510-C0.75/230-2 | 0,75 | 4,2 | |
| i510-C1.1/230-2 | 1,1 | 6 | |
| i510-C1.5/230-2 | 1,5 | 7 | |
| i510-C2.2/230-2 | 2,2 | 9,6 | |
| i550-C0.25/230-2 | 0,25 | 1,7 | |
| i550-C0.37/230-2 | 0,37 | 2,4 | |
| i550-C0.55/230-2 | 0,55 | 3,2 | |
| i550-C0.75/230-2 | 0,75 | 4,2 | |
| i550-C1.1/230-2 | 1,1 | 6 | |
| i550-C1.5/230-2 | 1,5 | 7 | |
| i550-C2.2/230-2 | 2,2 | 9,6 | |
| i510-C0.37/400-3 | 0,37 | 1,3 | 3 phases, 340 ... 528 (with RFI filter) |
| i510-C0.55/400-3 | 0,55 | 1,8 | |
| i510-C0.75/400-3 | 0,75 | 2,4 | |
| i510-C1.1/400-3 | 1,1 | 3,2 | |
| i510-C1.5/400-3 | 1,5 | 3,9 | |
| i510-C2.2/400-3 | 2,2 | 5,6 | |
| i550-C0.37/400-3 | 0,37 | 1,3 | |
| i550-C0.55/400-3 | 0,55 | 1,8 | |
| i550-C0.75/400-3 | 0,75 | 2,4 | |
| i550-C1.1/400-3 | 1,1 | 3,2 | |
| i550-C1.5/400-3 | 1,5 | 3,9 | |
| i550-C2.2/400-3 | 2,2 | 5,6 | |
| i550-C3/400-3 | 3 | 7,3 | |
| i550-C4/400-3 | 4 | 9,5 | |
| i550-C5.5/400-3 | 5,5 | 13 | |
| i550-C7.5/400-3 | 7,5 | 16,5 | |
| i550-C11/400-3 | 11 | 23,5 | |
| i550-C15/400-3 | 15 | 32 | |
| i550-C18/400-3 | 18,5 | 40 | |
| i550-C22/400-3 | 22 | 47 | |
| i550-C30/400-3 | 30 | 61 | |
| i550-C37/400-3 | 37 | 76 | |
| i550-C45/400-3 | 45 | 89 | |
| i550-C55/400-3 | 55 | 110 | |
| i550-C75/400-3 | 75 | 150 | |
| i550-C4.0/230-3 | 4 | 16,5 | 3 phases, 170 .. 264 (without RFI filter) |
| i550-C5.5/230-3 | 5,5 | 23 |
You can buy Lenze i500 compact AC converters (inverters), find out the price and more information about the product by contacting our specialists.
