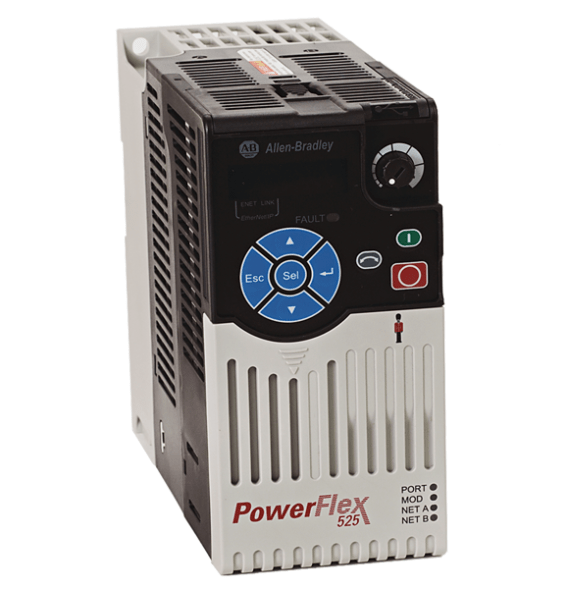

Rockwell Automation PowerFlex 525 AC Drives

Compact series of AC drives PowerFlex 525 from the company Rockwell Automation (Allen-Bradley) It is designed to control asynchronous and synchronous electric motors with a capacity of up to 22 kW. In comparison with the younger 523 series, they have more extensive process management capabilities. Four types of speed parameter control using feedback sensors and sensorless modes, sequential positioning are implemented, and there is also an energy-saving operation algorithm to save consumed resources.

They are characterized by optimal flexibility and ease of installation and configuration, for ease of interaction, the drives can be equipped with a graphical interface for both integrated and remote mounting. A rich arsenal of software products for configuring and maintaining production processes is provided. Built-in EtherNet/IP port, easy integration into the Logix environment, and modules for industrial protocols are also available.

Practical modular design, the model range has five overall offers, four types of network power characteristics, two types of operation modes with periodic load. A wide range of optional blocks to obtain the optimal variant of the technological equipment of the drive. They are capable of operating at ambient temperatures from -20 to 50 °C (up to 70 °C with additional preparation). Horizontal and vertical mounting, including close to each other.

Technical characteristics of Allen-Bradley converters of the PowerFlex 525 series

• Supply voltage: 100 - 120 V, 200-240 V, 380-480 V, 525-600 V;
• Electric motor power: 0.4 - 22 kW;
• Output current: 0,9 - 62,1 A;
• Management methods: scalar (volt-frequency), vector sensorless, vector feedback, mode for permanent magnet motors;
• Output frequency: 0 - 500 Hz;
• Permissible overloads: the normal mode is 110% of the nom. current for 1 minute, 150% for 3 seconds; heavy mode - 150% for 1 minute, 200% for 3 seconds;
• Enclosure protection class: IP20 (on request IP30);
• Built-in interfaces: порт EtherNet/IP, RS485/DSI, опционально плата EtherNet/IP с двумя портами, DeviceNet, PROFIBUS DP;
• Visualization and customization tools: QuickView Control Panel (LCD display), MainsFree programming (via USB), Studio 5000 Logix Designer, Connected Components Workbench;
• Built-in functions: auto-tuning, energy-saving mode, AppView and CustomView tools for specialized applications, position control (StepLogic and external contour), two PID controllers, safe torque shutdown, stop mode adjustment, four programmable acceleration/deceleration modes, power outage protection, PWM frequency adjustment up to 16 kHz and others.

Configuration of PowerFlex 525 inputs/outputs

• Analog: 2 inputs and 1 output;
• Digital: 7 inputs;
• relay: 2 exits.
• 2 optical outputs.

Optional PowerFlex 525 drive modules

• The remote control is built-in and portable.
• Network connection modules.
• Modules for connecting the encoder.
• EMC filters.
• Fan.
• Network chokes.
• Resistors.
• and other options (see the attached catalog).

Parameters of standard sizes of PowerFlex 525 electric drives (code 25B-..)

Supply voltage 100 - 120 V (50 Hz), 1 or 3 phases

Supply voltage 200 - 240 V (50 Hz), 1 or 3 phases

supply voltage 200 - 240 V (50 Hz), 3 phases

Supply voltage 380 - 480 V (50 Hz), 3 phases

Supply voltage 525 - 600 V (50 Hz), 3 phases

You can buy PowerFlex 525 frequency converters from Rockwell Automation (Allen-Bradley), find out the price and more information about the products by contacting our specialists.
