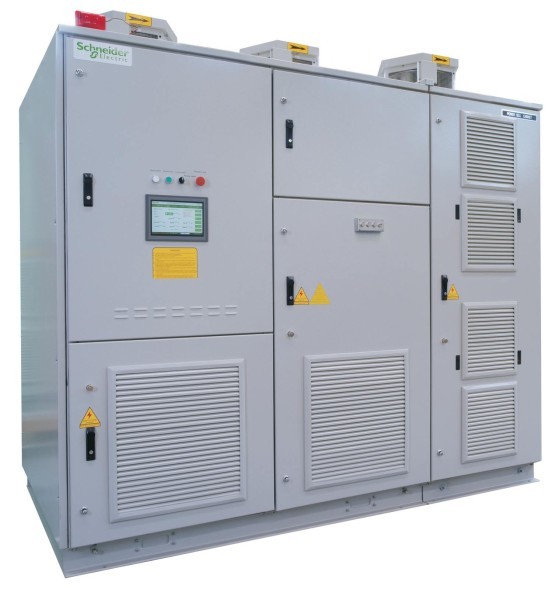

A family of high-performance and energy-efficient converters Altivar 1200 from the company Schneider Electric It is designed to control asynchronous and synchronous electric motors with a capacity of up to 16200 kVA. These drives use alternating current with a medium-voltage power supply range from 2400 to 11000 V. A very compact cabinet design, which necessarily includes an LCD control panel, all necessary software, backup power sources, protective elements, door locks to prevent unauthorized access. In addition to the basic configuration, the manufacturer is always ready to offer individual models with an optimal selection of characteristics, the flexible architecture of the series allows you to make changes without disturbing the overall configuration.
An excellent all-in-one solution for the integrated operation of production equipment, which significantly reduces the cost of integration and start-up of the drive system. Also, thanks to the innovative efficient cooling, additional ventilation units are not required. Thus, the use of advanced technological components ensures reliable and long-lasting operation of the drive.
Popular fields of application: cement production, heat and power plants, water supply and sanitation systems, metallurgy, coal and chemical industries and others. They are part of pumping and ventilation systems, compressors, crushers, conveyors.
Technical characteristics of Schneider Electric converters of the Altivar 1200 series
- Supply voltage: 2400, 3300, 4160, 5500, 6000, 6300, 6600, 10000, 11000;
- Electric motor power: 315 - 16200 kVA;
- Management methods: vector sensorless, scalar (voltage/frequency), energy-saving ;
- Output frequency: 0.5 - 120 Hz (scalar method), 0.5 - 70 Hz (vector method);
- Permissible overloads: 120 - 150%;
- Enclosure protection class: IP31 (IP41, IP42 on request);
- Built-in interfaces: Modbus, Modbus TCP, Profibus, Ethernet IP, DeviceNet;
- Visualization and customization tools: operator panel (liquid crystal, 10-inch diagonal) ;
- Built-in functions: smooth motor acceleration, cascade control mode, PID controller, auto-interception on the go, speed synchronization, auto-tuning of the motor, comprehensive protection, light and sound alarms, simulation mode for setting during installation, master-slave separation for multiple drives, automatic restart and others.
Parameters of standard sizes of ATV1200 electric drives
Voltage 3300 V
Type of drive | Power motor, kW | Current, A | Type of drive | Power motor, kW | Current, A |
ATV1200-A370–3333 | 309 | 65 | ATV1200-A1830–3333 | 1530 | 320 |
ATV1200-A470–3333 | 393 | 82 | ATV1200-A2000–3333 | 1672 | 350 |
ATV1200-A570–3333 | 477 | 100 | ATV1200-A2340–3333 | 1956 | 410 |
ATV1200-A660–3333 | 552 | 116 | ATV1200-A2800–3333 | 2341 | 490 |
ATV1200-A770–3333 | 644 | 135 | ATV1200-A3150-3333 | 2633 | 550 |
ATV1200-A860–3333 | 719 | 150 | ATV1200-A3500-3333 | 2926 | 612 |
ATV1200-A1000–3333 | 836 | 175 | ATV1200-A3780-3333 | 3160 | 661 |
ATV1200-A1140–3333 | 953 | 200 | ATV1200-A4120-3333 | 3444 | 720 |
ATV1200-A1250–3333 | 1045 | 220 | ATV1200-A4460-3333 | 3729 | 780 |
ATV1200-A1400–3333 | 1170 | 245 | ATV1200-A4860-3333 | 4063 | 850 |
ATV1200-A1600–3333 | 1338 | 280 |
|
Voltage 4160 V
Type of drive | Power motor, kW | Current, A | Type of drive | Power motor, kW | Current, A |
ATV1200-A350–4242 | 293 | 49 | ATV1200-A2310–4242 | 1931 | 320 |
ATV1200-A470–4242 | 393 | 65 | ATV1200-A2500–4242 | 2090 | 347 |
ATV1200-A560–4242 | 468 | 78 | ATV1200-A2960–4242 | 2475 | 410 |
ATV1200-A720–4242 | 602 | 100 | ATV1200-A3130–4242 | 2617 | 434 |
ATV1200-A790–4242 | 660 | 109 | ATV1200-A3530–4242 | 2951 | 490 |
ATV1200-A940–4242 | 786 | 130 | ATV1200-A4000-4242 | 3344 | 550 |
ATV1200-A1080–4242 | 903 | 150 | ATV1200-A4400-4242 | 3678 | 611 |
ATV1200-A1190–4242 | 995 | 165 | ATV1200-A4760-4242 | 3979 | 661 |
ATV1200-A1450–4242 | 1212 | 200 | ATV1200-A5200-4242 | 4347 | 720 |
ATV1200-A1585–4242 | 1325 | 220 | ATV1200-A5650-4242 | 4723 | 784 |
ATV1200-A1750–4242 | 1463 | 243 | ATV1200-A6150-4242 | 5141 | 850 |
ATV1200-A2020–4242 | 1689 | 280 |
|
Voltage 5500 V
Type of drive | Power motor, kW | Current, A | Type of drive | Power motor, kW | Current, A |
ATV1200-A430-5555 | 359 | 45 | ATV1200-A2870-5555 | 2399 | 301 |
ATV1200-A520-5555 | 435 | 55 | ATV1200-A3050-5555 | 2550 | 320 |
ATV1200-A620-5555 | 518 | 65 | ATV1200-A3210-5555 | 2684 | 337 |
ATV1200-A730-5555 | 610 | 76 | ATV1200-A3610-5555 | 3018 | 379 |
ATV1200-A860-5555 | 719 | 90 | ATV1200-A3910-5555 | 3269 | 410 |
ATV1200-A960-5555 | 803 | 100 | ATV1200-A4100-5555 | 3428 | 430 |
ATV1200-A1090-5555 | 911 | 114 | ATV1200-A4680-5555 | 3912 | 490 |
ATV1200-A1290-5555 | 1078 | 135 | ATV1200-A5250-5555 | 4389 | 550 |
ATV1200-A1430-5555 | 1195 | 150 | ATV1200-A5810-5555 | 4857 | 611 |
ATV1200-A1610-5555 | 1346 | 168 | ATV1200-A6300-5555 | 5267 | 660 |
ATV1200-A1910-5555 | 1597 | 200 | ATV1200-A6900-5555 | 5768 | 720 |
ATV1200-A2100-5555 | 1756 | 220 | ATV1200-A7450-5555 | 6228 | 780 |
ATV1200-A2300-5555 | 1923 | 241 | ATV1200-A8100-5555 | 6772 | 850 |
ATV1200-A2670-5555 | 2232 | 280 |
|
The voltage is 6000 V
Type of drive | Power motor, kW | Current, A | Type of drive | Power motor, kW | Current, A |
ATV1200-A470–6060 | 393 | 45 | ATV1200-A3130–6060 | 2617 | 301 |
ATV1200-A570–6060 | 477 | 55 | ATV1200-A3325–6060 | 2780 | 320 |
ATV1200-A670–6060 | 560 | 65 | ATV1200-A3500–6060 | 2926 | 337 |
ATV1200-A790–6060 | 660 | 76 | ATV1200-A3940–6060 | 3294 | 379 |
ATV1200-A940–6060 | 786 | 90 | ATV1200-A4260–6060 | 3561 | 410 |
ATV1200-A1040–6060 | 869 | 100 | ATV1200-A4470–6060 | 3737 | 430 |
ATV1200-A1190–6060 | 995 | 114 | ATV1200-A5100–6060 | 4264 | 490 |
ATV1200-A1400–6060 | 1170 | 135 | ATV1200-A5720-6060 | 4782 | 550 |
ATV1200-A1560–6060 | 1304 | 150 | ATV1200-A6350-6060 | 5309 | 611 |
ATV1200-A1750–6060 | 1463 | 168 | ATV1200-A6860-6060 | 5735 | 660 |
ATV1200-A2080–6060 | 1739 | 200 | ATV1200-A7500-6060 | 6270 | 720 |
ATV1200-A2290–6060 | 1914 | 220 | ATV1200-A8110-6060 | 6780 | 780 |
ATV1200-A2500–6060 | 2090 | 241 | ATV1200-A8840-6060 | 7390 | 850 |
ATV1200-A2910–6060 | 2433 | 280 |
|
Voltage 6300 V
Type of drive | Power motor, kW | Current, A | Type of drive | Power motor, kW | Current, A |
ATV1200-A450-6363 | 376 | 41 | ATV1200-A3050-6363 | 2550 | 280 |
ATV1200-A530-6363 | 443 | 49 | ATV1200-A3490-6363 | 2918 | 320 |
ATV1200-A720-6363 | 602 | 65 | ATV1200-A3760-6363 | 3143 | 345 |
ATV1200-A820-6363 | 686 | 75 | ATV1200-A4240-6363 | 3545 | 388 |
ATV1200-A900-6363 | 752 | 82 | ATV1200-A4470-6363 | 3737 | 410 |
ATV1200-A1020-6363 | 853 | 94 | ATV1200-A4770-6363 | 3988 | 437 |
ATV1200-A1100-6363 | 920 | 100 | ATV1200-A5350-6363 | 4473 | 490 |
ATV1200-A1190-6363 | 995 | 109 | ATV1200-A6000-6363 | 5016 | 550 |
ATV1200-A1480-6363 | 1237 | 135 | ATV1200-A6660-6363 | 5568 | 612 |
ATV1200-A1640-6363 | 1371 | 150 | ATV1200-A7200-6363 | 6019 | 660 |
ATV1200-A1970-6363 | 1647 | 180 | ATV1200-A7860-6363 | 6571 | 720 |
ATV1200-A2190-6363 | 1831 | 200 | ATV1200-A8550-6363 | 7148 | 783 |
ATV1200-A2400-6363 | 2006 | 220 | ATV1200-A9300-6363 | 7775 | 850 |
ATV1200-A2670-6363 | 2232 | 245 |
|
Voltage 6600 V
Type of drive | Power motor, kW | Current, A | Type of drive | Power motor, kW | Current, A |
ATV1200-A470–6666 | 393 | 41 | ATV1200-A3200–6666 | 2675 | 280 |
ATV1200-A560–6666 | 468 | 49 | ATV1200-A3660–6666 | 3060 | 320 |
ATV1200-A750–6666 | 627 | 65 | ATV1200-A3940–6666 | 3294 | 345 |
ATV1200-A860–6666 | 719 | 75 | ATV1200-A4440–6666 | 3712 | 388 |
ATV1200-A940–6666 | 786 | 82 | ATV1200-A4685–6666 | 3917 | 410 |
ATV1200-A1070–6666 | 895 | 94 | ATV1200-A5000–6666 | 4180 | 437 |
ATV1200-A1150–6666 | 961 | 100 | ATV1200-A5600–6666 | 4682 | 490 |
ATV1200-A1250–6666 | 1045 | 109 | ATV1200-A6300-6666 | 5267 | 550 |
ATV1200-A1550–6666 | 1296 | 135 | ATV1200-A7000-6666 | 5852 | 612 |
ATV1200-A1715–6666 | 1434 | 150 | ATV1200-A7550-6666 | 6312 | 660 |
ATV1200-A2060–6666 | 1722 | 180 | ATV1200-A8250-6666 | 6897 | 720 |
ATV1200-A2290–6666 | 1914 | 200 | ATV1200-A8950-6666 | 7482 | 783 |
ATV1200-A2515–6666 | 2103 | 220 | ATV1200-A9750-6666 | 8151 | 850 |
ATV1200-A2800–6666 | 2341 | 245 |
|
Voltage 10000 V
Type of drive | Power motor, kW | Current, A | Type of drive | Power motor, kW | Current, A |
ATV1200-A470–1010 | 393 | 27 | ATV1200-A3810–1010 | 3185 | 220 |
ATV1200-A610–1010 | 510 | 35 | ATV1200-A4440–1010 | 3712 | 256 |
ATV1200-A700–1010 | 585 | 40 | ATV1200-A4850–1010 | 4055 | 280 |
ATV1200-A790–1010 | 660 | 46 | ATV1200-A5000–1010 | 4180 | 289 |
ATV1200-A940–1010 | 786 | 54 | ATV1200-A5540–1010 | 4631 | 320 |
ATV1200-A1070–1010 | 895 | 62 | ATV1200-A6250-1010 | 5225 | 361 |
ATV1200-A1130–1010 | 945 | 65 | ATV1200-A7100-1010 | 5936 | 410 |
ATV1200-A1250–1010 | 1045 | 72 | ATV1200-A7900-1010 | 6604 | 456 |
ATV1200-A1570–1010 | 1313 | 91 | ATV1200-A8500-1010 | 7106 | 490 |
ATV1200-A1730–1010 | 1446 | 100 | ATV1200-A9530-1010 | 7967 | 550 |
ATV1200-A2000–1010 | 1672 | 115 | ATV1200-A10600-1010 | 8862 | 612 |
ATV1200-A2340–1010 | 1956 | 135 | ATV1200-A11500-1010 | 9614 | 664 |
ATV1200-A2600–1010 | 2174 | 150 | ATV1200-A12500-1010 | 10450 | 720 |
ATV1200-A2800–1010 | 2341 | 162 | ATV1200-A13500-1010 | 11286 | 779 |
ATV1200-A3130–1010 | 2617 | 181 | ATV1200-A14750-1010 | 12331 | 850 |
ATV1200-A3470–1010 | 2901 | 200 |
|
Data on standard sizes with a supply voltage of 2400 V and 11000 V are available on request.
You can buy Altivar 1200 (ATV1200) frequency converters from Schneider Electric, find out the price and more information about the products by contacting our specialists.
