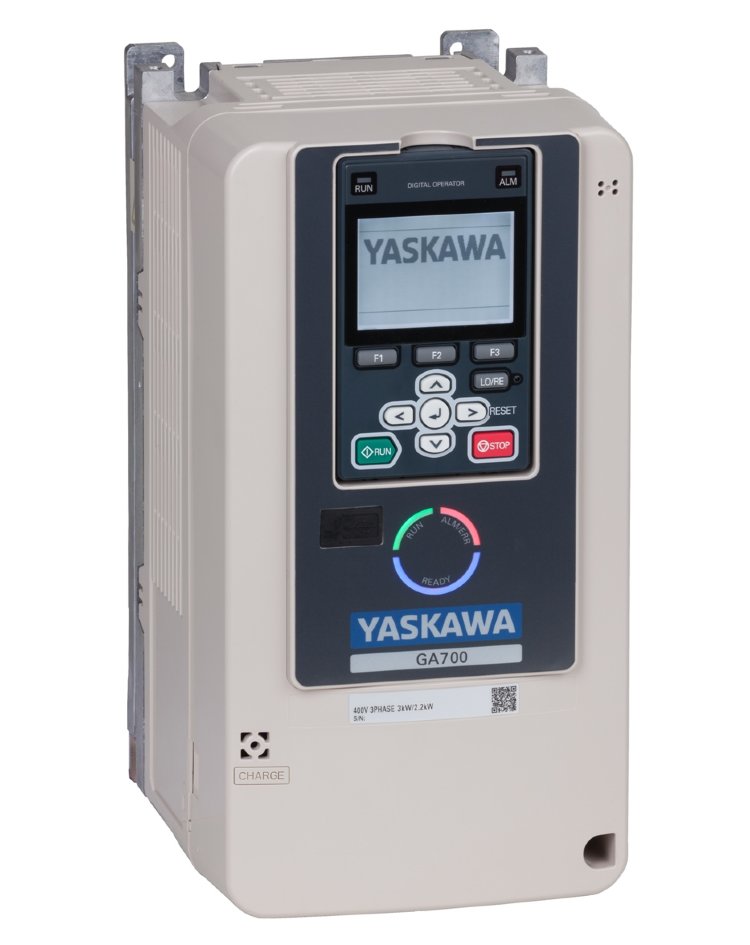

Ultra-modern and high-performance AC series electric drives GA700 They are one of the latest developments of the company Yaskawa. They have universal capabilities for use in a wide range of industries and support all major types of electric motors. These are innovative and high-tech drives for solving production tasks of any complexity.
The modes of sensory and sensorless vector control, two types of load capacity are implemented. The GA700 is as safe and reliable as possible, and its versatility is perfectly combined with the simplicity and speed of configuration. A wide range of different industrial network interfaces and a wide range of communication channels are available. And all these advantages are in a compact and practical design.
A wide range of models for two supply voltage ratings. For convenient operation of the operator, a remote control with a large LCD screen and data copying function is installed, as well as a package of software tools for conducting control operations from a PC, smartphone or tablet.
Technical characteristics of Yaskawa GA700 electric drives
- Supply voltage: 3AC 200- 240 V, 380- 480 V ;
- Power of electric motors: 0.55 - 450 kW;
- Output current: 1.8 - 720 A;
- Management methods: scalar, vector (sensorless and sensory);
- Output frequency: 0 - 590 Hz;
- Permissible overloads: the normal mode is 110% of the nom. current for 60 seconds, heavy duty - 150% of nom. current for 60 seconds ;
- Enclosure protection class: IP20 (IP55 on request);
- Interfaces: RS-485 MEMOBUS/Modbus, по запросу CANopen, CC-Link, DeviceNet, EtherCAT, Ethernet/IP /Dual-Port, MECHATROLINK-II, MECHATROLINK-III, Modbus/TCP /Dual-Port, POWERLINK, PROFIBUS-DP, PROFINET;
- Visualization and customization tools: LCD display with push-button navigation and real-time data copying function, software for control and parameterization using a personal computer ;
- Other features and functions: auto-tuning, PID controller, automatic maintenance of equal load balance between 2 motors, smooth start, energy-saving function, auto-restart after failure, overvoltage suppression, protective functions (overload, overheating, etc.), safe torque removal (SIL3), diagnostics of system components and others.
GA700 I/O Configuration
- Digital: 8 inputs and 4 outputs.
- Analog: 3 inputs and 2 outputs.
- Pulse (HTL): 1 input and 1 output.
- Mini-USB.
Optional modules for the GA700 series
- An expansion board for analog and digital inputs/outputs.
- Modules for connecting feedback sensors (encoders, resolvers).
- Modules of industrial communication interfaces.
- Anti-interference filters (EMC, harmonic distortion).
- Brake resistors and interrupters.
- AC chokes, output chokes.
- Remote control with Bluetooth.
- Mounting for an external radiator.
Parameters of standard sizes of electric drives Yaskawa GA700
supply voltage 200 V, 3 phases
Type of drive | Power, kW | Current, A | ||
heavy. mode | norm. mode | heavy. mode | norm. mode | |
GA70C2004BA | 0,55 | 0,75 | 3,2 | 3,5 |
GA70C2006BA | 0,75 | 1,1 | 5,0 | 6,0 |
GA70C2008BA | 1,1 | 1,5 | 6,9 | 8,0 |
GA70C2010BA | 1,5 | 2,2 | 8,0 | 9,6 |
GA70C2012BA | 2,2 | 3,0 | 11 | 12,2 |
GA70C2018BA | 3,0 | 3,7 | 14 | 17,5 |
GA70C2021BA | 3,7 | 5,5 | 17,5 | 21 |
GA70C2030BA | 5,5 | 7,5 | 25 | 30 |
GA70C2042BA | 7,5 | 11 | 33 | 42 |
GA70C2056BA | 11 | 15 | 47 | 56 |
GA70C2070BA | 15 | 18,5 | 60 | 70 |
GA70C2082BA | 18,5 | 22 | 75 | 82 |
GA70C2110BA | 22 | 30 | 88 | 110 |
GA70C2138BA | 30 | 37 | 115 | 138 |
GA70C2169BA | 37 | 45 | 145 | 169 |
GA70C2211BA | 45 | 55 | 180 | 211 |
GA70C2257BA | 55 | 75 | 215 | 257 |
GA70C2313BA | 75 | 90 | 283 | 313 |
GA70C2360BA | 90 | 110 | 346 | 360 |
GA70C2415BA | 110 | - | 415 | - |
Supply voltage 400 V, 3 phases
Type of drive | Power, kW (up to 460 V /more than 460 V) | Current, A (up to 460 V /more than 460 V) | ||
heavy. mode | norm. mode | heavy. mode | norm. mode | |
GA70C4002BA | 0,55 | 0,75 | 1,8 /1,6 | 2,1 |
GA70C4004BA | 0,75 | 1,5 | 3,4 /2,1 | 4,1 /3,0 |
GA70C4005BA | 1,5 | 2,2 | 4,8 /3,4 | 5,4 /4,8 |
GA70C4007BA | 2,2 | 3,0 | 5,5 /4,8 | 7,1 /6,9 |
GA70C4009BA | 3,0 | 3,7 | 7,2 /6,9 | 8,9 /7,6 |
GA70C4012BA | 3,7 | 5,5 | 9,2 /7,6 | 11,9 /11 |
GA70C4018BA | 5,5 | 7,5 | 14,8 /11 | 17,5 /14 |
GA70C4023BA | 7,5 | 11 | 18 /14 | 23,4 /21 |
GA70C4031BA | 11 | 15 | 24 /21 | 31 /27 |
GA70C4038BA | 15 | 18,5 | 31 /27 | 38 /34 |
GA70C4044BA | 18,5 | 22 | 39 /34 | 44 /40 |
GA70C4060BA | 22 | 30 | 45 /40 | 59,6 /52 |
GA70C4075BA | 30 | 37 | 60 /52 | 74,9 /65 |
GA70C4089BA | 37 | 45 | 75 /65 | 89,2 /77 |
GA70C4103BA | 45 | 55 | 91 /77 | 103 /96 |
GA70C4140BA | 55 | 75 | 112 /96 | 140 /124 |
GA70C4168BA | 75 | 90 | 150 /124 | 168 /156 |
GA70C4208BA | 90 | 110 | 180 /156 | 208 /180 |
GA70C4250BA | 110 | 132 /150 | 216 /180 | 250 /240 |
GA70C4296BA | 132 /150 | 160 /185 | 260 /240 | 296 /302 |
GA70C4371BA | 160 /185 | 200 /220 | 304 /302 | 371 /361 |
GA70C4389BA | 200 /220 | 220 /260 | 371 /361 | 389 /414 |
GA70C4453BA | 220 /260 | 250 /300 | 414 /414 | 450 /477 |
GA70C4568BA | 250 /300 | 315 /335 | 453 /477 | 568 /515 |
GA70C4675BA | 315 /370 | 355 /450 | 605 /590 | 675 /720 |
