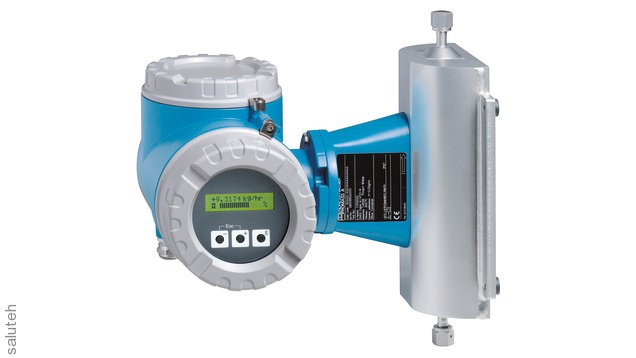

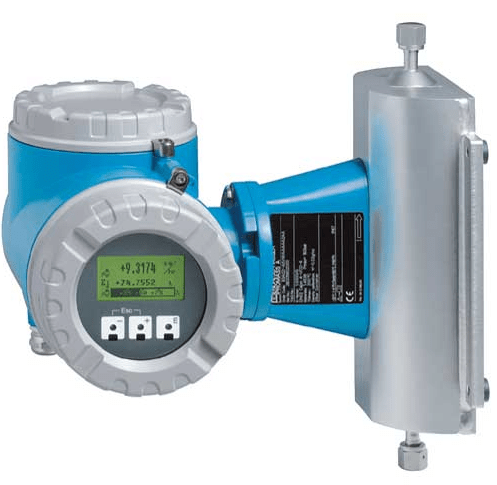

Proline Promass 83A Coriolis Flow Meter
Single-tube flow meter for low flow rates with advanced converter functionality
Promass A is known for its high accuracy in measuring the smallest flow rates of liquids and gases. It has advanced functionality, such as the use of software for filling and dosing, concentration measurement or advanced diagnostics in combination with the Promass 83 transducer with touch control and a four-line display.
Advantages
- The modular design and convenient setup menu allow you to increase the efficiency of using the flow meter
- Software functions for dosing and concentration measurement that expand the scope of the flow meter
- Simultaneous measurement of several process parameters
- Compact design of the flow meter for several process variables
- Vibration resistance due to the balance of the single-tube measuring system
- Resistance to external influences due to its robust construction
- Simple installation procedure without direct sections before and after the flow meter
Scope of application
- The coriolis flow measurement principle does not depend on such physical properties of the liquid as viscosity and density.
- It is used for continuous measurement, control of filling and dosing of low costs
- High-precision measurement of liquids and gases: emulsions, additives, flavorings, insulin, gases under high and low pressure
- The operating temperature of the liquid is up to +200 °C
- Operating pressure up to 400 bar
- Certificates for explosion-proof use
- ATEX, FM, CSA, TIIS, IECEx, NEPSI
Characteristics/Scope of application
- A single-tube system for high-precision measurement of minimum costs.
- The ambient temperature is -20...+65°C
- The operating temperature is -50...+200°C
- Working pressure abs. PN 16...400 Cl 150...600 JIS 10...63K
The title for the product
- Single-tube flow meter for very small volumes, with advanced converter functions. Accurate measurement of small volumes of liquids and gases for continuous process control.
- Sensor functions
- The highest safety of the technological process is the self–draining design of the measuring tube. Fewer measurement points in the process – multiparametric measurement (flow rate, density, temperature). Compact installation – no need for direct input or output sections. Nominal diameter: DN 1...4 (¹⁄₂₄...¹⁄₈").
- Operating pressure up to 400 bar (5800 lb/sq. inch).
Converter Features
Quality: software for monitoring filling and dosing, density, electrode cleaning, as well as in-depth diagnostics. Flexible data transmission options – many types of communication. Automatic data extraction for maintenance. 4-line display with backlight and touch control. Compact and separate versions of the device are available.
Nominal diameter range DN 1...4 (1⁄₂₄...1⁄₈¹)
The highest safety of the technological process is the self–draining design of the measuring tube. Fewer measurement points in the process – multiparametric measurement (flow rate, density, temperature). Compact installation – no need for direct input or output sections. Nominal diameter: DN 1...4 (¹⁄₂₄...¹⁄₈").
Operating pressure up to 400 bar (5800 lb/sq. inch).
Converter Features
Quality: software for monitoring filling and dosing, density, electrode cleaning, as well as in-depth diagnostics. Flexible data transmission options – many types of communication. Automatic data extraction for maintenance. 4-line display with backlight and touch control. Compact and separate versions of the device are available.
Nominal diameter range DN 1...4
