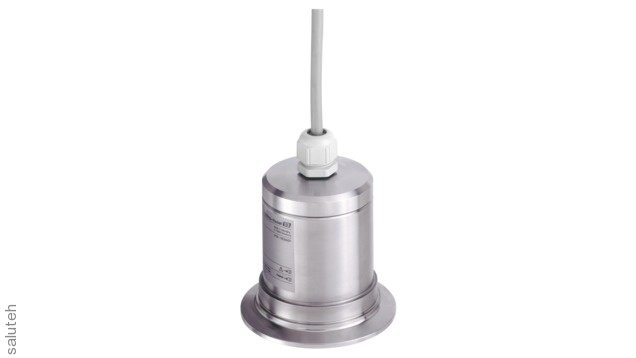

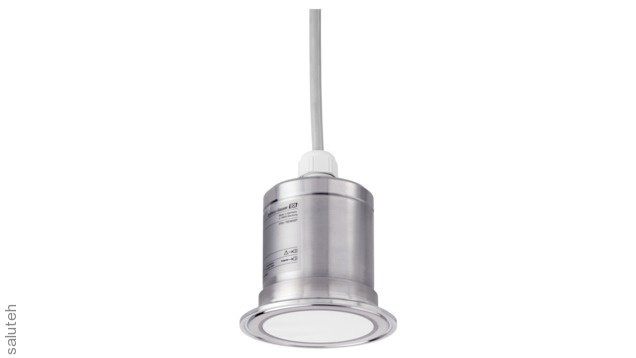

Prosonic FDU91F Ultrasonic Level Meter

Sensor FDU91F Designed for continuous non-contact and maintenance -free level measurement of liquids, pastes, powdered and coarse-grained bulk materials.It is also suitable for flow measurement in open channels and measuring weirs. The measurement is not affected by the dielectric constant, density or humidity, as well as the formation of sediment due to the self-cleaning mechanism of the sensors. A fully welded 316L housing with hygienic process connections is available. Maximum measuring range: liquids - 10m, bulk substances - 5m.

Advantages

• Built-in temperature sensor to correct the propagation time of the signal. Accurate measurements are possible even under conditions of temperature change
• Hermetically welded sensors (316L, 1.4404, 1.4435) with the highest chemical resistance
• Suitable for harsh environmental conditions due to the separate installation (at a distance of up to 300 m from the converter)
• The abbreviation of
