Main Features

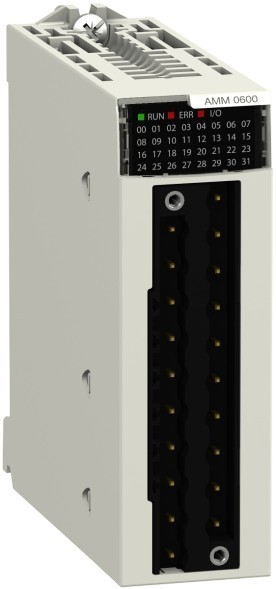

| product series | Modicon X80 | |
|---|---|---|
| the type of device or its accessories | Analog input/output module. | |
| electrical connection | 1 connector 20 channels | |
| decoupling of the entrance and exit | Without an interchange | |
| input level | High level | |
| The number of the analog input | 4 | |
| Connection type | Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
Additional features
| resolution of the analog input | 12 bits 0...20 mA 12 bit 0...5 V 12 bit 1...5 V 12 bits 4...20 mA 13 bits 0...10 V 14 bit +/- 10 V |
|
|---|---|---|
| permissible overload at the inputs | + /- 30 but 0...20 mA + /- 30 but 4...20 mA + /- 30 V + /- 10 V + /- 30 in 0...10 E + /- 30 in 0...5 E + /- 30 in 1...5 E |
|
| built-in converter resistor | 250 Ohm | |
| accuracy of the built-in current-limiting resistor | 0.1% - 15 million-1/°C | |
| Type of filter | First-order software filter | |
| the duration of the fast reading cycle | 1 ms + 1 ms x number of channels used | |
| nominally. duration of the reading cycle | 5 ms for 4 channels | |
| measurement error | 0.25 % full scale 0...20 mA 25 °C 0.25 % full scale 4...20 mA 25 °C <= 0,35 % полной шкалы +/- 10 V 0...60 °C <= 0,35 % полной шкалы 0...10 V 0...60 °C <= 0,35 % полной шкалы 0...5 V 0...60 °C <= 0,35 % полной шкалы 1...5 V 0...60 °C <= 0,5 % полной шкалы 0...20 mA 0...60 °C <= 0,5 % полной шкалы 4...20 mA 0...60 °C <= 0,6 % полной шкалы +/- 10 V 0...60 °C <= 0,6 % полной шкалы 0...20 mA 0...60 °C <= 0,6 % полной шкалы 4...20 mA 0...60 °C 0.25 % full scale 0...10 V 25 °C 0.25 % full scale 0...5 V 25 °C 0.25 % full scale 1...5 V 25 °C 0.35 % of the full scale 0...20 mA 25 °C 0.35 % of full scale 4...20 mA 25 °C 0,25 % полной шкалы +/- 10 V +/- 10 V 25 °C |
|
| deviation of the nom. characteristics depending on temperature | 100 million-1/°C +/- 10 V 100 million-1/°C 0...20 mA 100 million-1/°C 4...20 mA 30 million-1/°C +/- 10 V 30 million-1/°C 0...10 V 30 million-1/°C 0...5 V 30 million-1/°C 1...5 V 50 million-1/°C 0...20 mA 50 million-1/°C 4...20 mA |
|
| recalibration | Factory calibration at the outputs Built-in. at the entrances |
|
| decoupling voltage | 1400 V DC current between channels and ground 1400 V DC current between channels and bus 750 V DC Current Between a group of input/output channels |
|
| output level | High level | |
| The number of the analog output | 2 | |
| type of analog output | Current 0...20 mA Current 4...20 mA Voltage +/- 10 V |
|
| resolution of the analog output | 11 bits 0...20 mA 11 bits 4...20 mA 12 bit +/- 10 V |
|
| conversion time | <= 2 ms | |
| the maximum value to convert | +/- 11.25 V 0...10 V +/- 11.25 V 0...5 V +/- 11.25 V 1...5 V 0...24 But 0...20 mA 0...24 but 4...20 mA 0...30 But 0...20 mA 0...30 but 4...20 mA +/- 11.25 V +/- 10 V +/- 10 V |
|
| data exchange loss mode | We ask. Predefined |
|
| LED status indicator | 1 LED green RUN 1 LED per channel green channel diagnostics 1 LED red ERR 1 LED red in/out. |
|
| Product weight | 0.155 kg | |
| current consumption | 150 mA at 3.3 V DC 130 mA in 24 V post. current |
Operating conditions
| vibration resistance | 3 gn | |
|---|---|---|
| Impact resistance | 30 gn | |
| ambient temperature during storage | -40...85 °C | |
| Ambient operating temperature | 0...60 °C | |
| relative humidity | 5...95 % 55 °C without condensation | |
| degree of IP protection | IP20 | |
| Product certification | THIS CSA Merchant Navy EAC |
|
| standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
|
| protective design | TC | |
| working height | 0...2000 m 2000...5000 m (with a reduction factor) |
Features
Brand
Schneider
