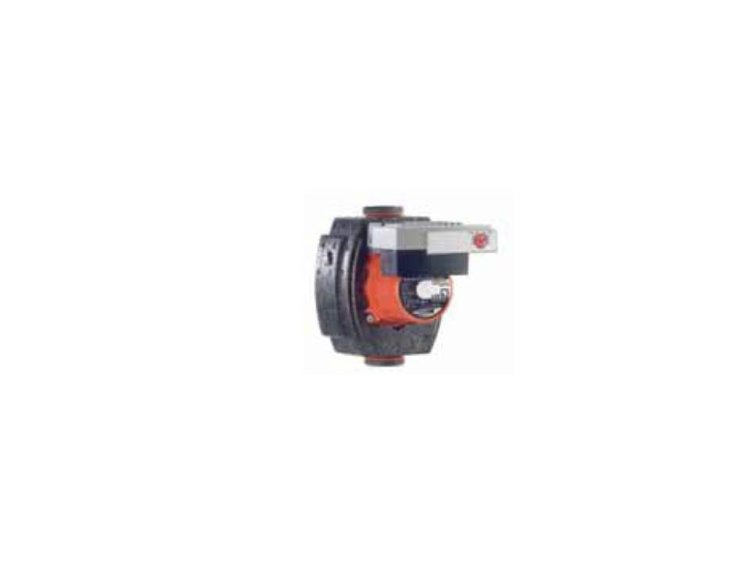

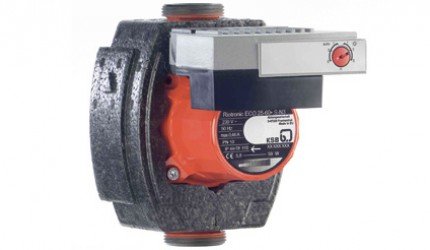

Circulation pumps of Riotronic Eco heating systems

Features:

The wet rotor system. The electric motor is equipped with an inverter system that provides smooth adjustment of the pressure of the supplied water.It does not require the intervention of maintenance personnel. Electric pump with mechanical seal of the pump shaft and dry motor rotor, threaded connection and constant rotation speed. It is used in hot water supply systems, swimming pool equipment, cooling water circuits and industrial installations.

Design /Execution of the high-efficiency KSB Riotronic ECO circulation pump:

Pump:

• Maintenance-free "wet" rotor pump (tubeless) with electric motor, threaded connection of pipelines, with integrated frequency converter for smooth adjustment
• Building Engineering Equipment Dispatching System (BMS) Riotronic ECO 25-60 BMS
• General fault alarm External off-contact
• Setpoint or speed adjustment
• Pump housing with standard thermal insulation

Drive:

• Overload-protected electric motor with shielded stator, protection class IP 44, insulation class F, power supply connection 1~ 230 V, 50 Hz.
• In accordance with the standard EN 61 000-6-3

Scope of application: in industrial circulation systems, air conditioning systems, thermal energy recovery plants and water heating systems.

• Rp Diameter: 1-1
• Consumption [m3/h]: up to 2.5
• Head [m]: up to 5
• Pressure [bar]: up to 10
• Temperature [°C]: +15 to +110
• Rotation speed [rpm]: up to 3500
