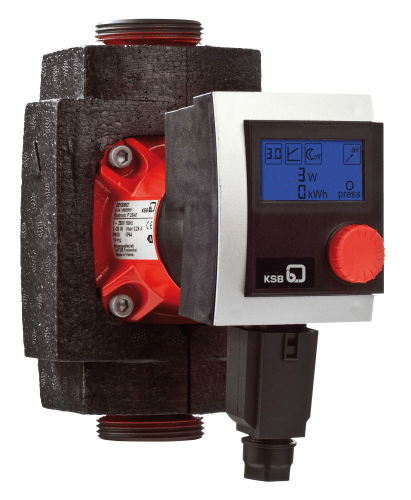

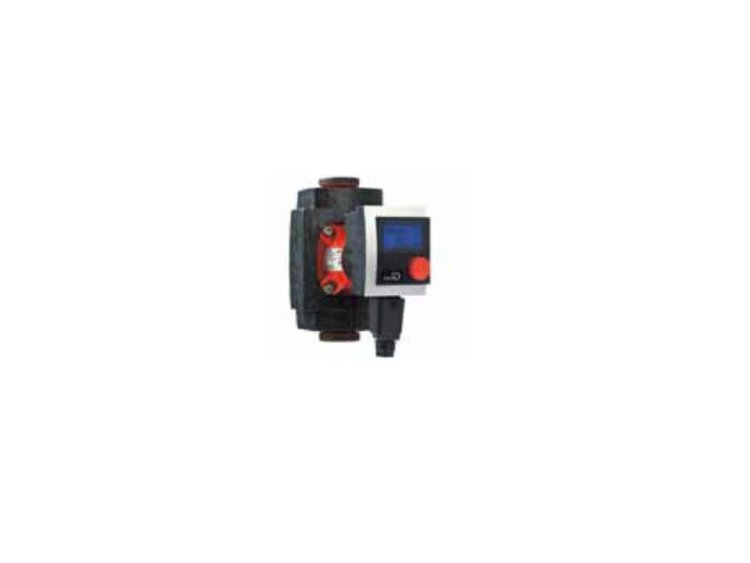

The KSB Riotronic P centrifugal pump (Label A) is used in:
water heating and air conditioning installations industrial circulation systems and the advantages of the KSB Riotronic centrifugal pump P
Maximum efficiency
up to 90% energy savings compared to old unregulated centrifugal pumps, the minimum power consumption is 3 V thanks to the EC technology, it is possible to pre-configure the types of regulation for optimal load matching Δp-c (constant pressure drop), Δp-V (variable pressure drop)
Transparency
large display for indicating the values of flow safety
Automatic air removal high starting torque unlock function
Easy installation
connection to the network via a plug connector serial thermal insulation compact dimensions for installation in any space
Description: Maintenance-free wet rotor pump with integrated frequency converter for smooth pressure adjustment.Scope of application: in industrial circulation systems, air conditioning systems, thermal energy recovery plants and water heating systems.
- Rp Diameter: 1-1
- Consumption [m3/h]: up to 4.2
- Head [m]: up to 6
- Pressure [bar]: up to 10
- Temperature [°C]: -2 to +110
- Rotation speed [rpm]: up to 4230
