B100-3272V Rotary Pump Sivag Series B

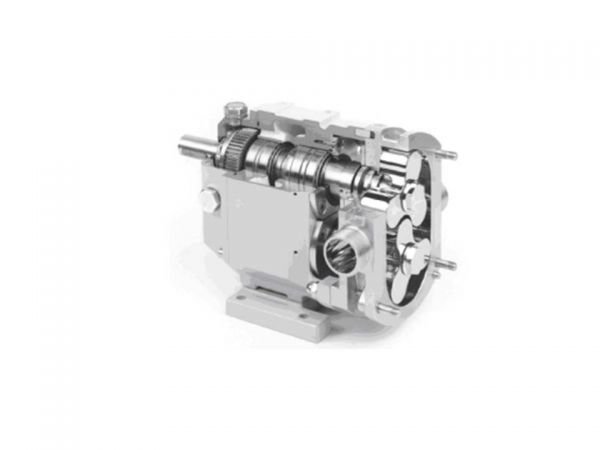

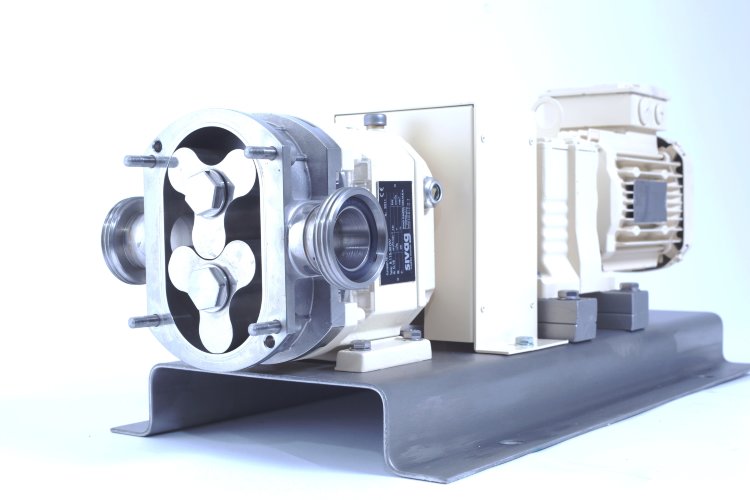

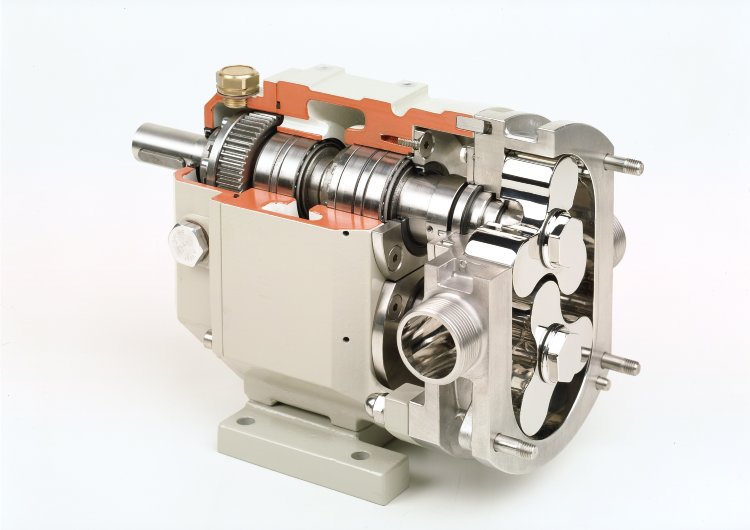

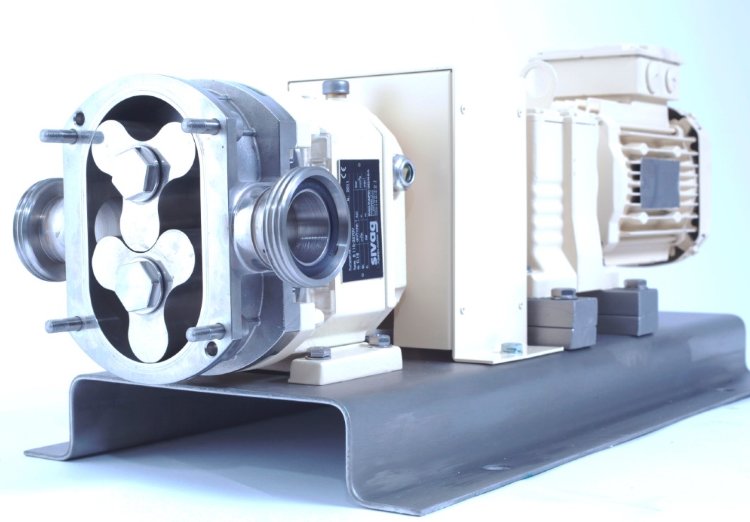

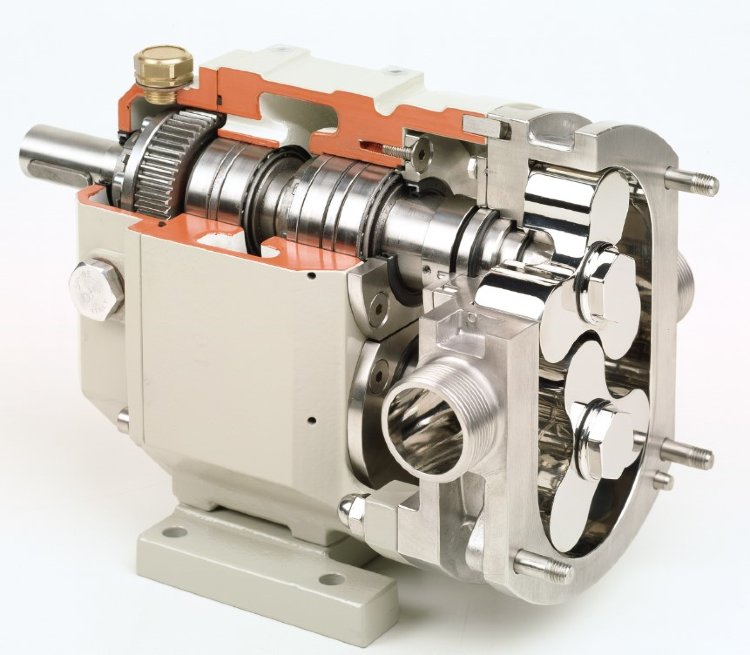

The "B" series cam pumps are direct displacement rotary pumps. Productivity is directly proportional to the speed of rotation. Two synchronously rotating rotors rotate in the housing. This design ensures very gentle pumping of liquids.
Features:
- Maximum working pressure: 10 (20) bar
- Temperature: up to 180 °C
- 3-A certification is possible
- EHEDG certification is possible
- CIP /SIP
- Materials: B-Aggr
All hydraulic parts are made of AISI 316 stainless steel.
The gearbox is made of cast iron EN-GJL-250. Special alloys and surface hardenings are available on request.
An alternative shaft seal with a mechanical seal, an oil seal or a special lip seal. Materials and design of the mechanical seal, seal or lip seal according to the liquid.
Rotary pumps of the "B" series are pumps with a displacer.
Cam pumps series "B" they are reliable rotary pumps. Pump performance directly proportional rotation speeds. In a closed case, they rotate synchronously two The rotor. Given construction provides very gentle pumping liquids.
The feed is proportional to the engine speed. Two rotors rotating synchronously in the housing ensure gentle pumping of liquids.
- Maximum pressure:10 (20) bar
- Temperature: up to 180°C
- Flow rate up to 300 m/h
- Viscosity up to 100,000 mm
