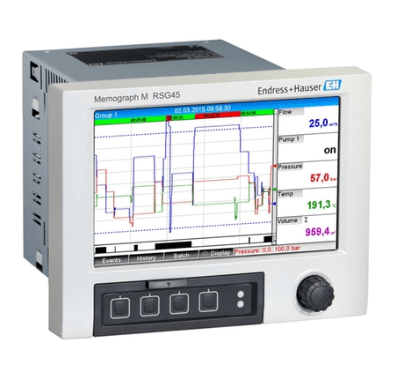

RSG45-MWW8/0 RSG45 videog rafico Recorder
Advanced Memograph M RSG45 Data Manager
Data storage, visualization, analysis and transmission
An advanced paperless recorder. Thanks to its intuitive operation, the Memograph M can be easily and quickly adapted to any application. The process values are clearly and clearly displayed on the display. Their registration, monitoring of the limit values and analysis are carried out in a safe mode. Measured and calculated values can be freely transferred to higher-level systems using communication protocols. It is also possible to exchange information between individual hardware modules. A DIN rail version without a display is also available.
Advantages
- High degree of data security: intrusion-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)
- HART input channels: sensors with the HART protocol are connected directly to the recorder, which allows you to obtain accurate process values for calculations and registration
- HART Gateway: Direct access to HART sensors in the field using FieldCare saves time and allows you to use the Memograph M device without breaking the measuring circuit
- Stainless steel front side with touch control: trouble-free operation in difficult conditions such as hygienic or explosive zones.
- DIN rail design: compact device with small dimensions for cabinet mounting or field use.
- System features: Support for standard digital buses (Modbus, Profibus DP, PROFINET, EtherNet/IP) for fast integration with various systems
- Built-in web server: remote access to device management and visualization allows you to reduce maintenance costs
- WebDAV: Files saved to an SD card can be transferred directly to a PC over the HTTP protocol without using additional software.
Scope of application
A solution for any task. Examples:
- Measurement of process parameters
- Power plants and power supply
- Monitoring/calculation of the efficiency of steam boilers
- Food and pharmaceutical industry
- Design and construction of plants and equipment; milk pasteurization plants
- Measurement of environmental and climate parameters; control of rainwater overflow
- Ensuring the quality and required production parameters
- Product batch analysis; remote alarm functions
- iTHERM TrustSens Calibration Monitoring
- Test boxes and laboratory tests
