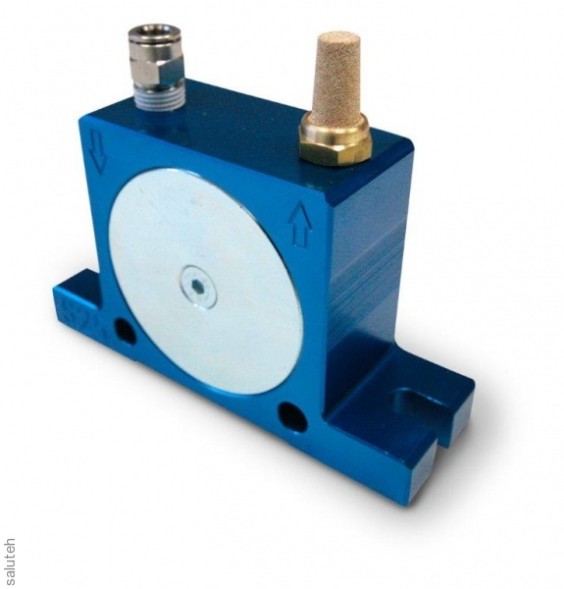

Pneumatic ball Vibrator S13

S13 pneumatic ball vibrator

In ball vibrators of the S series The vibration is created by the movement of the ball inside the eccentric guide. The S-series models produce vibration with low amplitude and high frequency. They are particularly effective for handling fine powders and granular materials such as sand or grain. They are also suitable for compacting concrete mixes.

The S-series models are made of aluminum (the body is painted blue) with a galvanized steel cover, eight different sizes are available.

In accordance with ATEX EX II 2DG cT(x), the S-series models are suitable for use in explosive atmospheres. The operating noise reaches 90 dB(A).

Among pneumatic vibrators, the S-series models are the most economical solution.

• Article number EPS013
• Manufacturer OLI S.P.A
• Length (mm) 113
• Width (mm) 25
• Height (mm) 65
• Gross weight (kg) 0.26
• Vibration 2 bar 15000
• Driving force 2 bar 32
• Air consumption 2 bar 94
• Vibration 4 bar 18500
• Vibration 6 bar 22500
• Air consumption 4 bar 158
• Air consumption 6 bar 225
• Driving force 4 bar 55
• Driving force 6 bar 87
