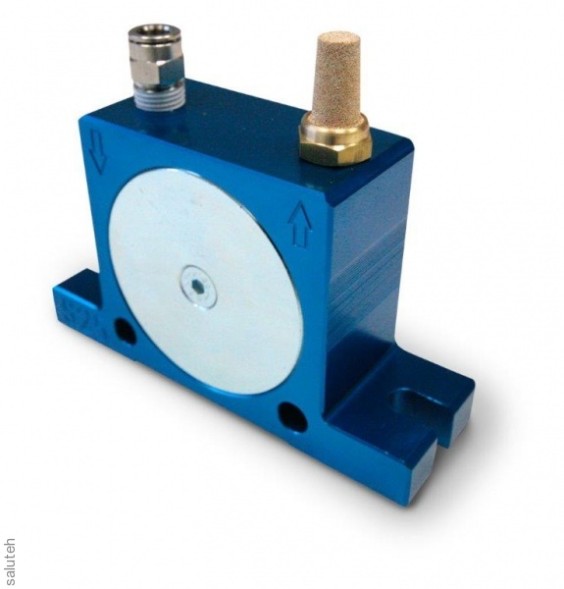

Pneumatic Ball Vibrator S16

S16 pneumatic ball vibrator

In the S-series ball vibrators, vibration is created by the movement of the ball inside the eccentric guide. The S-series models produce vibration with low amplitude and high frequency. They are particularly effective for handling fine powders and granular materials such as sand or grain. They are also suitable for compacting concrete mixes.

The S-series models are made of aluminum (the body is painted blue) with a galvanized steel cover, eight different sizes are available.

In accordance with ATEX EX II 2DG cT(x), the S-series models are suitable for use in explosive atmospheres. The operating noise reaches 90 dB(A).

Among pneumatic vibrators, the S-series models are the most economical solution.

• Article number EPS016
• Manufacturer OLI S.P.A
• Length (mm) 113
• Width (mm) 28
• Height (mm) 65
• Gross weight (kg) 0.3
• Vibration 2 bar 13000
• Driving force 2 bar 45
• Air consumption 2 bar 122
• Vibration 4 bar 17000
• Vibration 6 bar 19500
• Air consumption 4 bar 200
• Air consumption 6 bar 280
• Driving force 4 bar 80
• Driving force 6 bar 110
