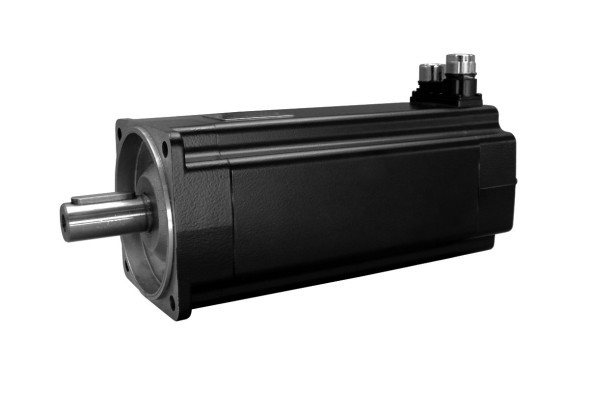

Synchronous servomotors of the series To be from the company KEB designed and optimized for direct installation and operation with modular gearboxes of various types of gears (planetary, cylindrical, conical and worm). The range of models has five overall types, all of which are characterized by high performance and dynamics. Reliable and high-quality components, bearings are filled with grease with a lifetime service life.
The design of the case is closed, a high level of protection against dust and water penetration. PTC thermistors are built into the motor winding to comply with the temperature regime and avoid critical overheating. Built-in 12-bit resolution resolver interface, practical rotary connectors, easy installation.
Technical characteristics of the KEB series synchronous servo motors To be
- Nominal torque: 0.82 - 90 Nm;
- Rated power: 0.26 - 15.71 kW;
- Operating speed range: 1500 - 6000 rpm;
- Supply voltage: 200, 400 V;
- Overall height (flange): 75, 88, 115.5, 145, 190 mm;
- Mounting design: THE 3001, IN 3011, IN 3031;
- The degree of protection of the case: IP54 (on request IP55);
- Cooling system: natural convection (forced ventilation on request);
- Operating temperature range: - 20 ... + 40 °C;
- Insulation class: F.
- Options: brake block (magnetic or spring), BISS encoder interface (resolution 19-bit and 12/19-bit, for single and multi-turn, respectively), shaft with key.
Nominal characteristics of standard sizes of KEB series servomotors To be
Type of motor | Nom. moment, Nm | Moment at zero. speeds, Nm | Max. moment, Nm | Power, kW | Speed, rpm |
It's the 21st. | 0,82 | 0,85 | 2,55 | 0,26 | 4500/6000 |
TA22 | 1,45 | 1,55 | 4,65 | 0,52 | |
It's the 31st. | 1,35…1,45 | 1,5 | 4,5 | 0,52 | 3000/4500/6000 |
It's the 32nd. | 2,15…2,55 | 2,75 | 8,25 | 0,99 | |
It is the 33 | 2,75…3,55 | 3,9 | 11,7 | 1,46 | |
It's the 41st. | 5,7…6,6 | 6,9 | 20,7 | 1,54 | 2000/3000/4500
|
It's the 42nd. | 7,1…8,6 | 9,2 | 27,6 | 1,95 | |
It is the 43 | 8,6…10,8 | 11,7 | 35,1 | 2,29 | |
It's the 51st. | 9…10,8 | 11,5 | 34,5 | 2,58 | |
It's the 52nd. | 11,3…14,7 | 16,1 | 48,3 | 3,52 | |
It is the 53 | 10,4…17,7 | 20 | 60 | 4,4 | |
It's the 61st. | 26…31,5 | 34,5 | 103,5 | 6,6 | 1500/2000/3000 |
It's the 62nd. | 33…44 | 50 | 150 | 8,8 | |
It is the 63 | 37…55 | 64 | 192 | 10,37 | |
TA 63F | 55…82 | 90 | 192 | 15,71 |
You can buy synchronous servo motors of the KEB TA series, find out the price and more information about the product by contacting our specialists.
