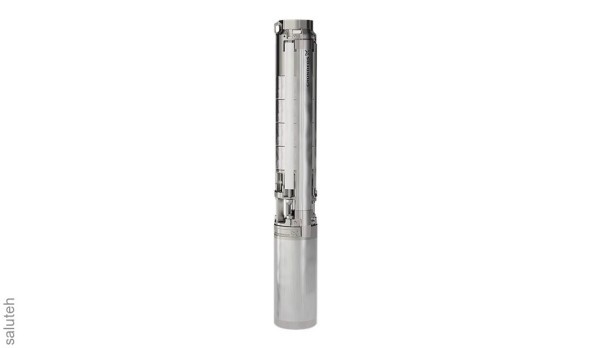

A submersible borehole pump designed for pumping clean water. It can be installed in both vertical and horizontal positions. All metal parts are made of stainless steel, EN 1.4301 (AISI 304), which provides high corrosion resistance. This pump is approved for pumping drinking water. The pump is equipped with an MS60005 electric motor.5 kW with sand protection, shaft end seal, water-lubricated support bearings and a diaphragm for volume compensation. The electric motor is a hermetically sealed submersible motor with good mechanical stability and high efficiency. Suitable for temperatures up to 40 °C. The electric motor is equipped with a Grundfos Tempcon sensor, which, through communication via a power line, together with the MP204 control panel, allows temperature control. The electric motor is designed for direct start from the mains at full voltage (DOL).
| Liquid: |
| Working fluid: | <
