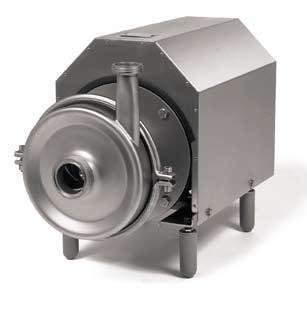

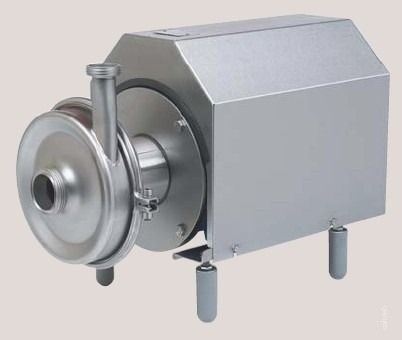

The SolidC pump is suitable for CIP, as it has a large radius of curvature of the internal surfaces and cleanable seals. The SolidC sanitary pump has a stainless steel casing covering the motor and four height-adjustable stainless steel legs.
Materials
Steel parts in contact with the product: . . . . . . . . . . . . . . . . . . . . W.o. 1.4404 (316L).
Other steel parts: . . . . . . . . . . W.o. 1.4301 (304).
Обработка: . . . . . . . . . . . . . . . . . . . . Дробеструйная обработка (стандарт)
Polishing 3A (R 0.8)
Seals in contact with the product: . . . . . . . . . . . . . . . . . . . . EPDM (according to the FDA).
Connections for FSS: External thread R 1/8" (BSP) .
Engine
Flange-mounted electric motor conforming to the IEC metric standard (EFF II), 2-pole, frequency 3000/3600 rpm at 50/60 Hz, IP 55 (drainage holes with labyrinth seals), insulation class F.
Dimensions of the electric motor 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . 1,1 - 22 kW.
60 Гц: . . . . . . . . . . . . . . . . . . . . . . . 1,3 - 25 кВт
The SolidC pump is designed for standard general purpose work (non-disassembly washing) in public utilities, for water supply (processing, heating, cooling), for washing machines, for transport needs within its operating range.
SolidC is suitable for applications in the food, dairy, brewing, cosmetics, pharmaceutical, light, chemical and water industries.
