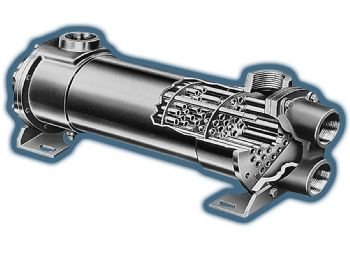

Shell-and-tube heat exchanger Funke SSCF 603-1 stroke Corp.1.4571 pipes 1.4571 d.9.5 mm perg.1.4571 pipes

Shell and tube heat exchanger Funke series SSCF/P

A heat exchanger for universal use in modular systems with a heat exchange surface area from 0.11 m2 to 11.45 m2. 110 geometric dimensions, 3 types of materials used, 2 types of construction (fixed and floating pipe grating) form an extensive standard-size range:

• SSCF Stainless steel(SS); fixed pipe grating (F)

The heat exchanger with a fixed tube grid can be manufactured in one-, two- and four-way versions, in the series with a floating tube grid, only one- and two-way versions are available due to design difficulties.

The separation of the tube bundle geometry into O- and W-versions allows for excellent optimizations in terms of thermal conductivity coefficient and pressure loss value: in c
