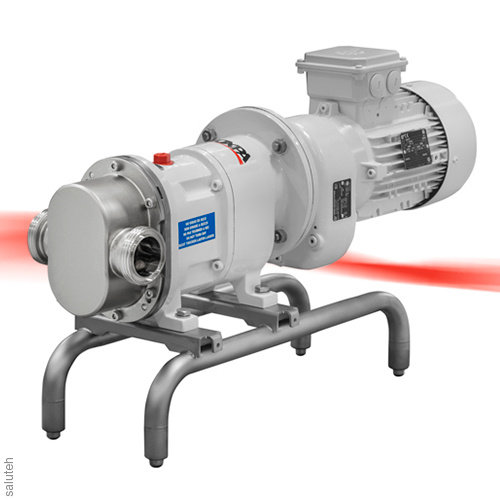

Cam Monoblock pump TLS is a volumetric sanitary pump. The advantage of a cam pump is its small size, in which it provides High performance and maximum reliability, which makes it indispensable in the food, dairy and cosmetic industries. It is intended as for pumping liquids high or low viscosity, and for use in filtration and bottling. The special design of the cams ensures accurate and undamaged pumping of liquids with mechanical inclusions.
The principle of operation
Cam pump TLS in monoblock design is prepared for installation of gear motors with flange B5 on it.
The basis cam The pump TLS consists of a housing and a cover made by micro-casting of stainless steel, and three-bladed rotors with sanitary connection. Moreover, cam pump it is equipped with height-adjustable supports of hygienic design.
Design and characteristics
Cam pump TLS is equipped with an external balanced C/SiC/EPDM mechanical seal. If necessary, other materials can be used.
Cylindrical coaxial gearbox with flange B5 in accordance with IEC standard and three-phase motor, 4 poles=1500/1750 rpm, energy efficiency class in accordance with EU directive, IP 55 protection and Class F insulation.
Materials
Stainless steel parts.become,
in contact with the product AISI 316L (1.4404)
The rest of the parts are made of stainless steel.AISI 304L steel (1.4306)
Support and lantern GG-25
Pads in contact with the EPDM product according to the FDA
Mechanical seal:
Rotating part of Silicon carbide (SiC)
The stationary part of Carbon (C)
EPDM Gaskets
Surface treatment:
Internal polished, Ra < 0,8 μm
Exterior: Matte
Connections: DIN 11851
CLAMP
SMS
Options
Fully drained housing.
Mechanical seal: SiC/SiC, TuC/SiC.
The lip seal.
Seals: FPM.
External bypass.
Two-bladed rotors.

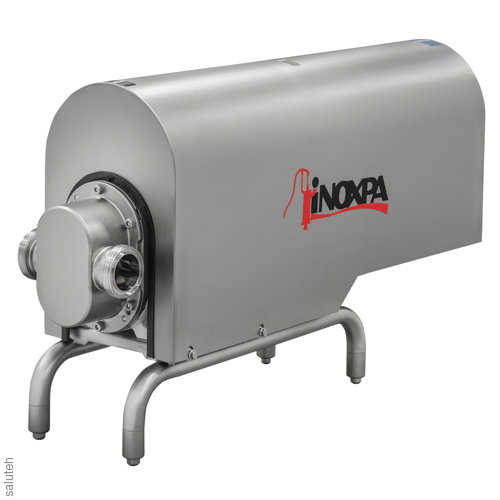

The stainless steel drive housing is mounted without disassembling the pump.
Motors: other voltages, frequencies and protections.
Different types of connections.
The trolley is made of stainless steel.
The control panel is made of polyester or stainless steel.
