Working moment, cmkg
78
Centrifugal force, kN
4,30
Power, kW:
0,55
Rotation speed, rpm
1000
Pre-order
$2,475.84$37.53
Description
Features
Reviews

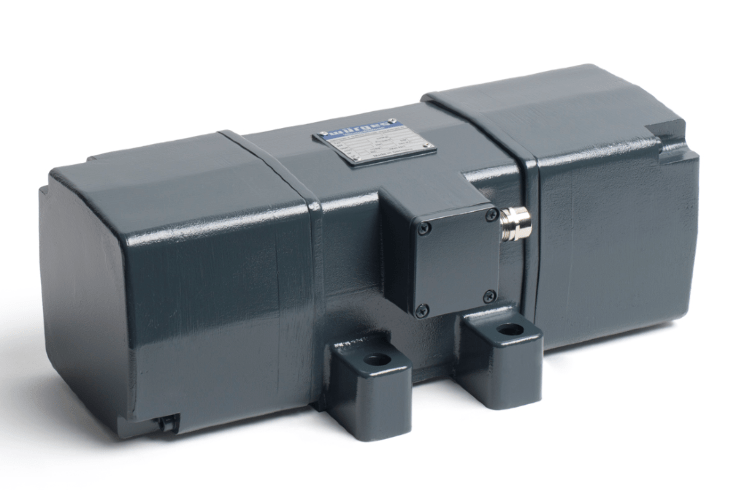

HV 30/6-75 86520 Pad Vibrator
HV 30
Vibration motors with standard design
Three-phase vibration motors
The extremely durable housing is made of high-strength, improved cast aluminum. The bearings are lubricated with a special lubricant, which will ensure long-term operation of the device. The 2-pole vibrator has several levels of centrifugal force adjustment using unbalanced weights; other types have smooth adjustment. The vibrator can be used in continuous operation mode, taking into account the permissible current consumption.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 65 Heat resistance class F
Features
Working moment, cmkg
78
Centrifugal force, kN
4,30
Power, kW:
0,55
Rotation speed, rpm
1000
Rated current, A
5
Power Supply, In
~ 400V AC
Weight, kg
31,0
Brand
Wuerges
