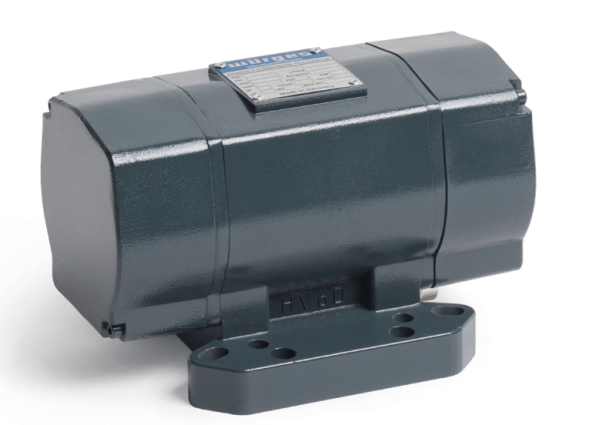

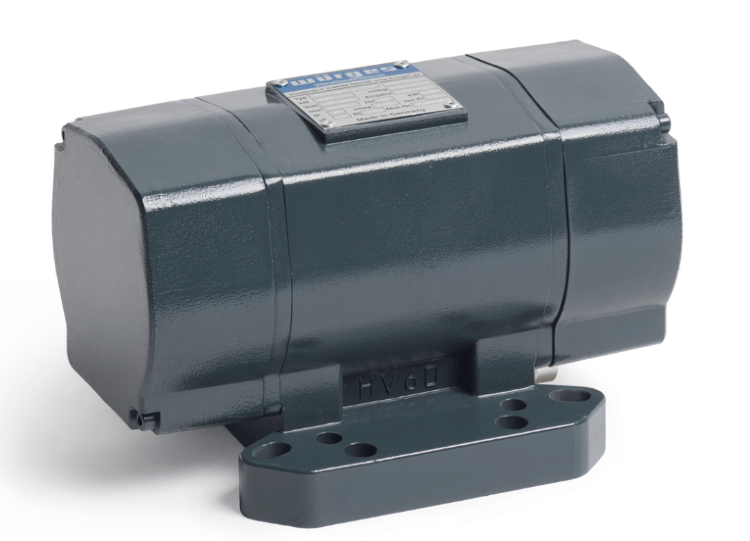

HV 6/6-18 Ex 86264 Pad Vibrator
HV 6 D
Vibration motors with standard design
Three-phase vibration motors
Hole diagram 65 x 140
The durable body is made of cast aluminum. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of adjustment of the centrifugal force by means of unbalanced weights. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption. (*Exception: type HV 6/2-8 with 40% cont. on)
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 65 · Heat resistance class F
All three-phase HV 6 motors are also available in ATEX II 3G/D T3 versions.
