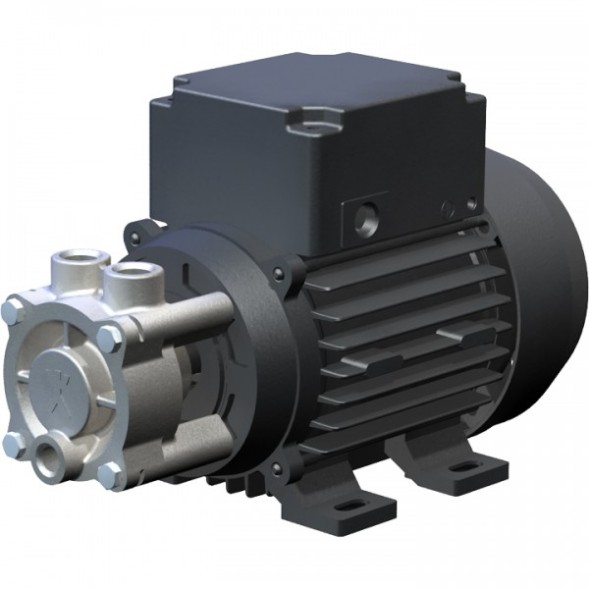

Centrifugal turbine pumps of the series LNY /LSY-2841 from the company Pumping bacon they create high liquid supply pressure in applications with low volume flow rates. The most compact construction architecture, block mounting design, horizontal orientation of the installation. The suction and supply pipes are located radially upwards with respect to the axis of the motor, and the suction pipe can also be made in a coaxial position.
Brass is used as the structural materials of the pump body, the shaft is made of 1.4122 stainless steel and sealed with a mechanical seal (carbon /silicon carbide /fluoro rubber). The impeller material is brass or polyesterephyrketone. Three-phase electric motors of high energy efficiency class are used for the drive, with surface cooling and protection against penetration of water and dust.
LSY-2841 - self-priming pumps
LNY-2841 - without self-priming
Pumping liquids: water, solutions.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water supply, water treatment, cooling installations and for other technological processes.
Technical characteristics of Speck Pumpen turbine pumps of the LNY /LSY-2841 series
- Volume consumption: up to 14 l/min;
- Discharge height: up to 38 m;
- Liquid temperature: up to 120 °C ;
- Installation: horizontal.
To buy Speck Pumpen turbine pumps of the LNY /LSY-2841 series, you can find out the price and more information about the products by contacting our specialists.
