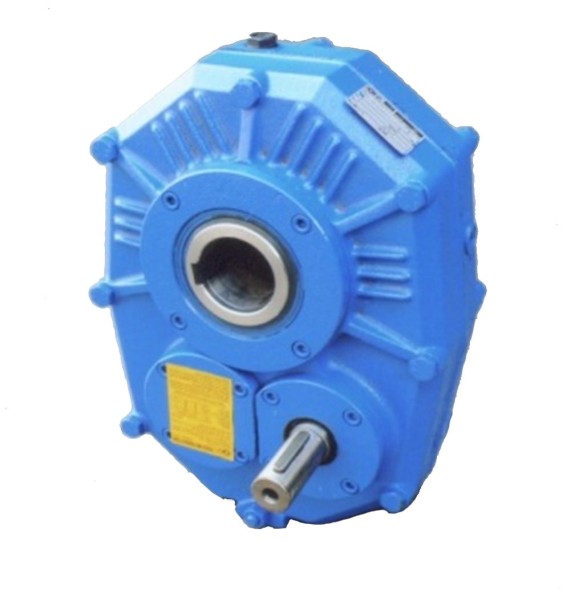

Cylindrical gearboxes Rossi with parallel shaft arrangement They are represented by a line of seven dimensions of transfer units in a two-stage execution configuration, an ideal solution for operation as part of belt conveyor drives, can also be used for equipment of mixers, screw conveyors, rotary sieves, hoists, crushers and other applications satisfying the initial parameters.
Durable cast iron body, carefully machined hardened steel gears, very compact design for placement in confined spaces. All models, without exception, are equipped with a reverse lock, optionally a jet rod can be installed.
Technical characteristics of Rossi parallel gearboxes (catalog P)
- Gear ratio: 10, 16, 20, 25;
- Nominal torque: 31.5 - 1180 Nm;
- Motor power: 0.6 - 85 kW;
- Speed (at the entrance): 90 - 1400 rpm;
- Number of steps: 2;
- Mounting design: horizontal as standard, on request V1, V3.
Standard sizes of Rossi parallel cylindrical gearboxes
Type of gearbox | Moment, Nm | Gear ratio |
R 2I 85 OP | 31,5 - 45 | 16, 20, 25 |
R 2I 105 OP | 47,5 - 90 | 10, 16, 20, 25 |
R 2I 125 OP | 80 - 140 | 10, 16, 20, 25 |
R 2I 150 OP | 132 - 250 | 10, 16, 20, 25 |
R 2I 180 OP | 224 - 425 | 10, 16, 20, 25 |
R 2I 210 OP | 500 - 710 | 16, 20, 25 |
R 2I 250 OP | 850 - 1180 | 16, 20, 25 |
You can buy Rossi parallel shaft gearboxes (catalog P), find out the price and more information about the product by contacting our specialists.
