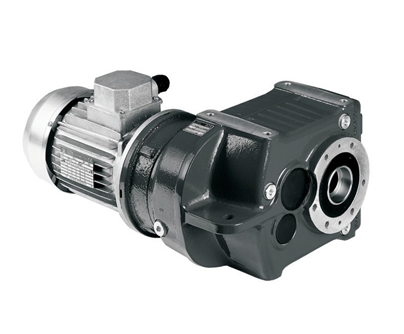

Cylindrical gearboxes with parallel shafts families P from the company STM These are compact, high-tech, reliable and ready-to-use mechanical transmissions. The model range consisting of five overall dimensions is represented by two- and three-stage versions, a wide range of available operating parameters. An excellent solution in a limited workspace.
The monolithic body is made of cast aluminum (in sizes 63-71) or cast iron (in sizes 90-125) and, due to the absence of component parts, has high rigidity as opposed to high loads. The internal structure of the gearbox is designed in such a way as to optimize the circulation of lubricants, reduce noise and ensure the tightness of the structure.
There are three main configurations of gearboxes in this category
- PM - connecting flange for motor connection (IEC standard)
- PR - solid shaft at the entrance
- PC - series with built-in motor
The modularity of the connecting elements at the gearbox outlet makes it easy to dock with the driven equipment without unnecessary add-ons. The following possible output shaft options are offered: solid double, slotted, double slotted and double flanged, hollow with a keyway, with a quick-fix device or with a shrink disc.
Technical characteristics of cylindrical gearboxes with parallel shafts STM PM, PR, PC series
- The torque: 77 - 2395.6 Nm;
- Transmission ratio: 2,6 - 253,2;
- Input speed range: 500 - 2800 rpm;
- Output speed range: 1.8 - 1078.5 rpm;
- Number of gears: 2, 3;
- Mounting design: IN B5, IM B14;
- Operating temperature range: -10 ... 60 °C.
Parameters of standard sizes of gearboxes with parallel shafts STM PM, PR, PC series
Type gearboxes | Ratio transfers | Moment, Nm | Power, kW | Speed, rpm |
PR 63/2 | 3,0 - 45,2 | 77 - 255 | 0,3 - 7,9 | 11,1 - 935,6 |
PR 63/3 | 43,4 - 216,9 | 220 - 260 | 0,1 - 1,6 | 2,3 - 64,6 |
PR 71/2 | 2,6 - 50,5 | 120 - 480 | 0,5 - 14,3 | 9,9 - 1078,5 |
PR 71/3 | 39,5 - 220,8 | 420 - 540 | 0,1 - 3,3 | 2,3 - 70,8 |
PR 90/2 | 2,7 - 50,9 | 270 - 1000 | 1,1 - 30,5 | 9,8 - 1025,6 |
PR 90/3 | 38,7 - 253,2 | 700 - 945 | 0,2 - 5,7 | 2,0 - 72,3 |
PR 112/2 | 2,9 - 48,9 | 480 - 1900 | 2,1 - 51,2 | 10,2 - 967,0 |
PR 112/3 | 10,1 - 54,7 | 1350 - 1900 | 0,4 - 8,3 | 1,8 - 54,7 |
PR 125/2 | 5,4 - 57,5 | 900 - 2395,6 | 2,3 - 51,1 | 8,7 - 514,7 |
To buy cylindrical gearboxes and gear motors with parallel shafts of STM PM, PR, PC series, you can find out the price and more information about the product by contacting our specialists.
