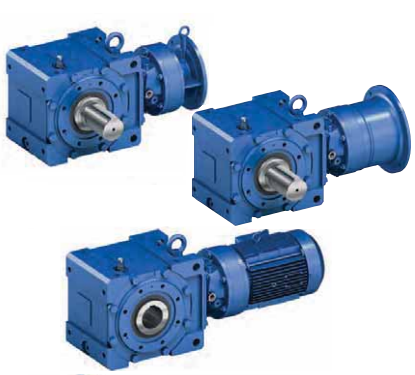

The family of angle reducers and gear motors Cyclo Bevel Buddybox 4 (Cyclo BBB4) This is the widest range of single- and two-stage bevel-cylindrical transmission units, an extremely reliable and efficient offer for medium-power applications with cycloid or planetary input units. A huge range of reduction coefficients, advanced technology for working with heavy loads and at the same time a remarkably compact design.
The body is made of ductile iron, all mechanical elements are made of hardened steel, tapered bearings and a double seal on the output shaft are installed to eliminate leaks. A unique connection node at the inlet for more efficient energy transfer compared to typical keyways. To ensure the flexibility of adaptation to various applications, this series offers various outlet connections, various mounting solutions for easy installation of the drive, horizontal and vertical positioning.
Технические характеристики угловых редукторов Sumitomo Cyclo BBB4 (Cyclo Bevel Buddybox 4)
- The torque: 123 - 17400 Nm;
- Gear ratio: 11 - 26000;
- Number of gears: 1, 2;
- Motor power: 0.1 - 55 kW.
Standard sizes of Sumitomo Cyclo BBB4 series gears
Cyclo BBB4 single-stage angle reducers: 4A100, 4B125, 4C170, 4E175, 4A105, 4B140, 4C175, 4E180, 4A110, 4B145, 4D160, 4E185, 4A115, 4B160, 4D165, 4E190, 4A120, 4B165, 4D170, 4E195, 4A125, 4C140, 4D175, 4F180, 4A140, 4C145, 4D180, 4F185, 4A145, 4C160, 4D185, 4F190, 4B120, 4C165, 4E170, 4F195.
Cyclo BBB4 two-stage angle reducers: 4A10DA, 4B16DA, 4C17DC, 4E17DC, 4A12DA, 4B16DB, 4D16DA, 4E18DA, 4A12DB, 4B16DC, 4D16DB, 4E18DB, 4A14DA, 4C14DA, 4D16DC, 4E19DA, 4A14DB, 4C14DB, 4D17DA, 4E19DB, 4A14DC, 4C14DC, 4D17DB, 4F18DA, 4B12DA, 4C16DA, 4D17DC, 4F18DB, 4B12DB, 4C16DB, 4D18DA, 4F19DA, 4B14DA, 4C16DC, 4D18DB, 4F19DB, 4B14DB, 4C17DA, 4E17DA, 4B14DC, 4C17DB, 4E17DB.
You can buy Cyclo BBB4 angle reducers from Sumitomo, find out the price and more information about the product by contacting our specialists.
