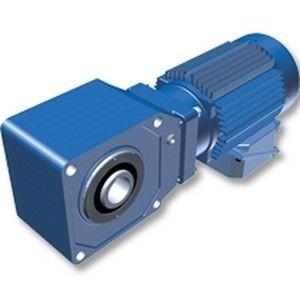

Sumitomo Hyponic Angle Reducers These are ultra-compact and versatile units with high power density and a wide range of gear ratios for a diverse range of production applications. High work efficiency is ensured through the use of special technology (patent of the company) without the need to install cooling units, it is remarkably quiet and smooth running.
The lightweight aluminum body has an all-weather design, the hypoid gears are made of hardened steel and guarantee long-lasting use without noticeable wear. A unique grease that minimizes mechanical maintenance costs. The applied sealing system eliminates the possibility of leakage, which makes it possible to use this series to work in special conditions of compliance with the regulations of the technological process, for example in the food industry.
Types of structural mounting solutions in the Hyponic line:
RNYM - with a hollow shaft at the outlet
RNFM - flange mounting (2 options)
RNHM - on paws
The built-in electric motors can be equipped with a brake block.
Technical characteristics of Sumitomo Hyponic gearboxes and gear motors
- Rated torque: 30 - 1480 Nm;
- Gear ratio: 5 - 1440;
- Motor power: 0.12 - 90 kW;
- Speed (at the entrance): 1450 rpm;
- Speed (output): 1.01 - 290 rpm;
- Motor power supply: 100-400 V (1 or 3 phases).
Standard sizes of Sumitomo Hyponic gearboxes
Type of gearbox | Moment, Nm | Transmission ratio |
1120 | 30 | 5 - 60 |
1220 | 55 | 5 - 60 |
1230 | 100 | 80 - 120 |
1320 | 110 | 5 - 60 |
1330 | 100 | 80 - 240 |
1340 | 195 | 300 - 720 |
1420 | 220 | 5 - 60 |
1430 | 205 | 80 - 240 |
1440 | 390 | 300 - 1440 |
1520 | 430 | 5 - 60 |
1530 | 415 | 80 - 240 |
1531 | 570 | 40 - 80 |
1540 | 730 | 300 - 1440 |
1630 | 1243 | 10 - 120 |
1631 | 1480 | 150 - 240 |
1632 | 1035 | 10 - 60 |
1640 | 1480 | 300 - 1440 |
You can buy Sumitomo Hyponic angle reducers, find out the price and more information about the product by contacting our specialists.
