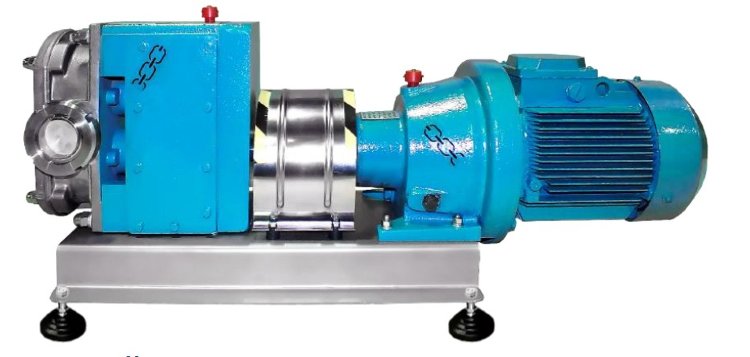

SHNK14-5/2 (ORA-5/2)-MNR-DN40/DN40 MON-90-4,8- AIR90LB8+blowing
+Vesper frequency converter 1.5kW,380V
+ Option. The casing
(SHNK-14-5/2(ORA-5/2) -pump brand, 2 – two-lobed, M-upgraded, H – seal stuffing box, P- heating jacket,
DN50/DN40 –diameter of the product inlet/outlet, MON-90-4,8- AIR90LB8 – brand of gear motor (4.8-gear ratio, blowing - forced blowing/cooling of the electric motor)
Q=0.25...1.2 m3/h±10%, P=0.5MPa (5atm),N=1.1kW, n=142 rpm
It is designed for pumping fermented dairy products, cottage cheese and whey mixtures, high-fat cream, condensed milk, ice cream mixtures, mayonnaise, sauces, etc. The pumps are easy to maintain, easy to wash and disassemble.
The pumps have bellows-type shaft end seals. All components and parts in contact with the product are made of stainless acid-resistant steel. Advantages:
- High productivity with relatively small dimensions (reduction of occupied area);
- The possibility of vertical execution, which improves the suction conditions for complex products;
- The possibility of manufacturing with a heating jacket;
- Easy to maintain and operate, reliable and durable.
TECHNICAL CHARACTERISTICS OF THE PUMP:
- Product temperature – up to +85 0C
- The performance is regulated by the frequency
- converter (PE) – 0.25...1.2 m3/hour ±10%
- The recommended operating range of the PE is 10...50 Hz
- Discharge pressure - up to 0.5 MPa (5 atm.)
- The number of rotations of the rotors is 142 rpm
Electric motor
- (general industrial design (50Hz, IP54, U3):
- Power -1.1 kW
- Voltage – 380 V
- Number of revolutions – 720 rpm
- Forced blowing (cooling) of the electric motor
- Product inlet/outlet diameter - DN40/DN40 DIN 11 851 – milk coupling assembly
- The diameter of the inlet/outlet to the heating jacket is G1/2”
- The material of the flow part of the pump is steel 12X18H10T and 14X17H2
- The frame material is AISI304 stainless steel
- Shaft seal – stuffing box

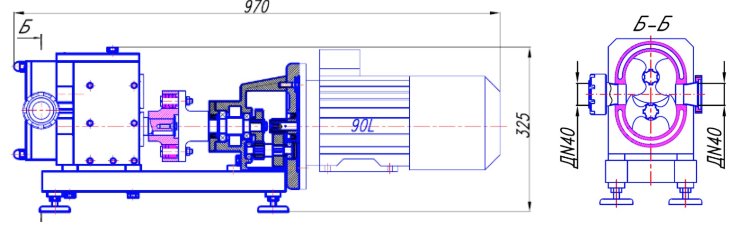

- Overall dimensions – 970 x 265 x 325 mm
- Weight – 93 kg
